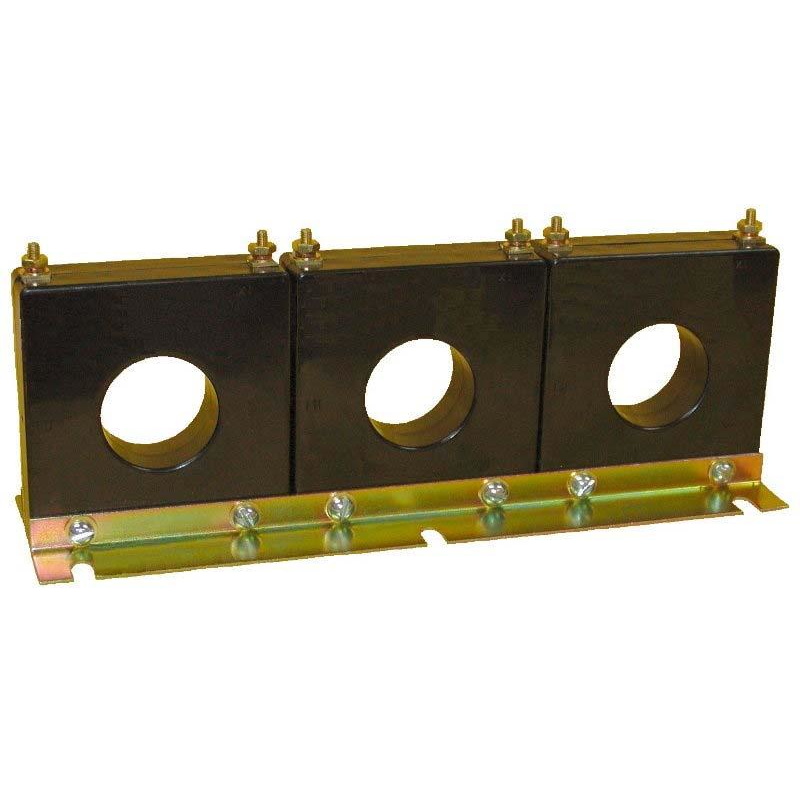

APPLICATION:
- 3 phase metering and other switchboard applications.
FREQUENCY:
- 50-400 Hz.
INSULATION LEVEL:
- 600 Volts, 10 kV BIL full wave.
Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
Approximate weight 6.75 lbs.
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 3P4 |
| Input Range | 0-150AAC |
| Accuracy | 2% Class |
| Output | 0-1AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Window | 1.44" Diameter |
