3P4-SD-41765 ITI

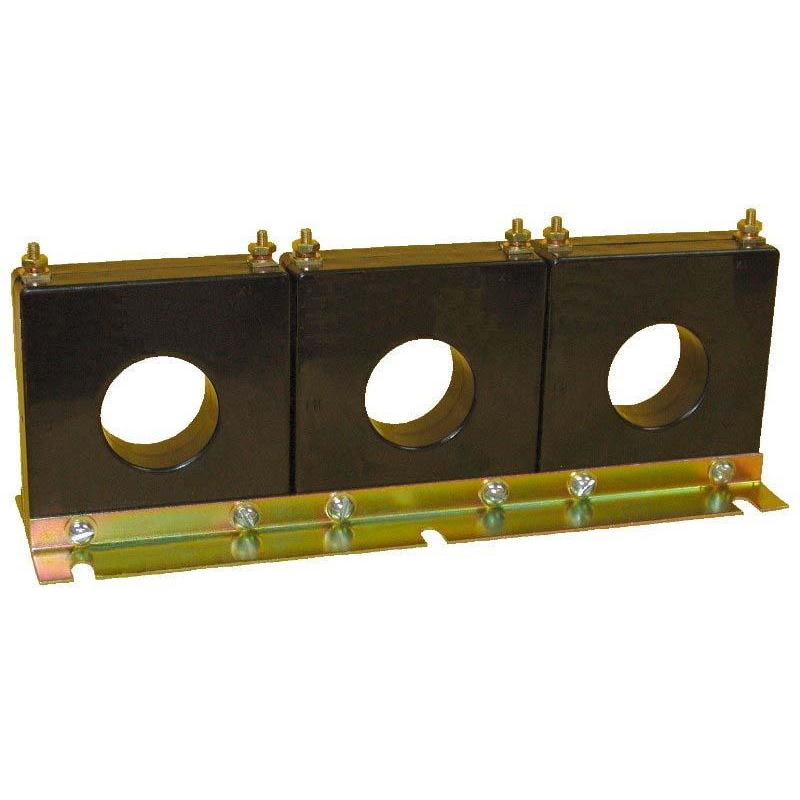

Model 3P4 150:1A Ratio CT, 1.44" Window, ITI

516.98 516.98 USD 516.98

516.98

  • Brand
  • Model
  • Input Range
  • Accuracy
  • Output
  • CT Window
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

APPLICATION:

  • 3 phase metering and other switchboard applications.

FREQUENCY:

  • 50-400 Hz.

INSULATION LEVEL:

  • 600 Volts, 10 kV BIL full wave.

Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
Approximate weight 6.75 lbs.

Specifications

Brand Instrument Transformers Inc
Model 3P4
Input Range 0-150AAC
Accuracy 2% Class
Output 0-1AAC
CT Window 1.44" Diameter
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.4035
ECCN EAR99
