3P4-151 ITI

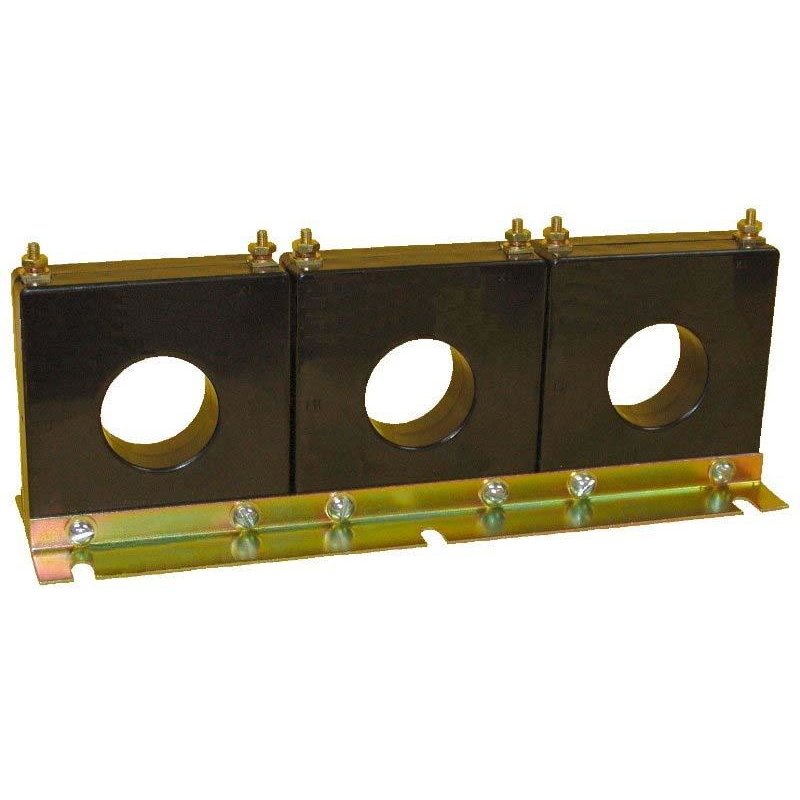

Model 3P4 150:5A Ratio CT, 1.56" Window, ITI

361.51 361.51 USD 361.51

361.51

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Window
  • CT Secondary Winding Resistance
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

APPLICATION:

  • 3 phase metering and other switchboard applications.

FREQUENCY:

  • 50-400 Hz.

INSULATION LEVEL:

  • 600 Volts, 10 kV BIL full wave.

Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
Approximate weight 6.75 lbs.

Specifications

Brand Instrument Transformers Inc
Model 3P4
Input Range 0-150AAC
Input Frequency 60Hz
Accuracy 0.6 B0.1, 1.2 B0.2, 2.4 B0.5
Output 0-5AAC
CT Ratio 150:5A

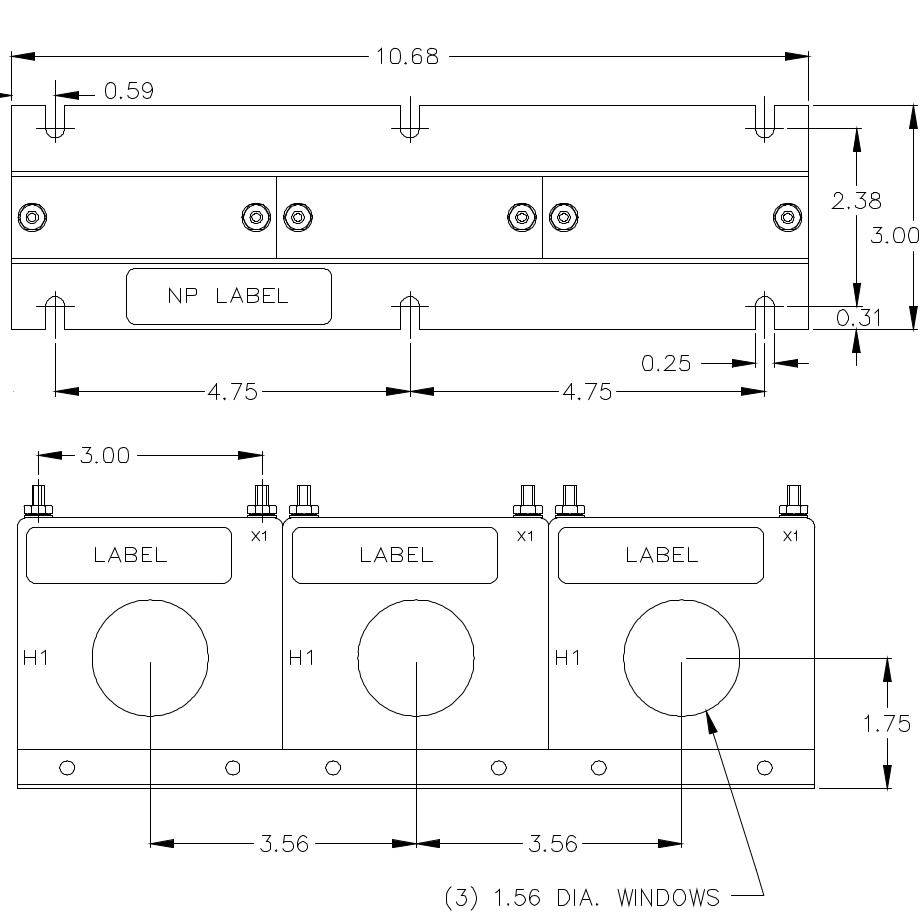

CT Window 1.56" Diameter
CT Secondary Winding Resistance 0.034Ω (34mΩ) @ 75°C
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.4035
ECCN EAR99
