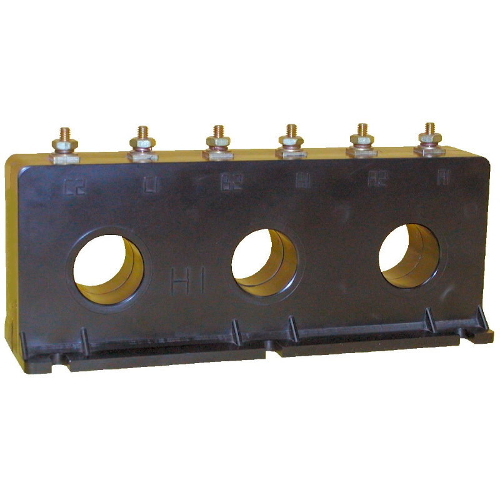

Model 3P3 300:5A Ratio CT, 10VA, 0.97" Window, ITI
APPLICATION: 3 phase metering and other switchboard applications and for current to voltage conversion by use of a loading resistor as illustrated in the graph below and having low primary current input.
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V, 10kV BIL full wave
CONTINUOUS THERMAL CURRENT RATING FACTOR
- Models 3P3-500 - 3P3-301: 1.33 at 30°C amb., 1.0 at 55°C amb.
- Models 3P3-1000T: 450A at 30°C amb., 300A at 55°C amb.
- Terminals are brass studs No. 8-32 with one flatwasher, lockwasher, and regular nut.
- Transformers can be special ordered with secondary leads configured in various ways.
- Load resistors may be mounted directly on terminals thus providing a "space saver" feature.
- Approximate weight: 1.75 lbs
Specifications
Product | |
---|---|
Brand | Instrument Transformers Inc |
Model | 3P3 |
Input Range | 0-300AAC |
Input Frequency | 60Hz |
Accuracy | 1% Class |
Output | 0-5AAC |
Tariff Code | 8504.31.4035 |
ECCN | EAR99 |
Insulation Level | 600V, 10kV BIL full wave |
Current Transformers | |
---|---|
CT Burden VA Max. | 10.0VA |
CT Continuous Thermal Rating Factor | 1.33 at 30°C amb., 1.0 at 55°C amb. |
CT Ratio | 300:5A |
CT Window | 0.97" Diameter |
