- APPLICATIONS
- Switchgear
- Distribution system
- Generator sets
- Control panels
- Overload protection
- Control devices
- System voltage 720V (0.72kV) maximum
- Test voltage 3kV for 1 minute
- System frequency 50 or 60 Hz
- Insulation class E
- Overload withstand 1.2 times rated current continuously
- Short circuit thermal 100 x rated primary for 1 second
- Operating temperature 20°C to 70°C
- Relative humidity 0-90% (non condensing)
- Compliant with IEC 60044-1. Bs7626
- Accuracy class 1
- Rated dynamic current = 2.55 x lht
- Enclosure flame retardant grade classified UL 94V-O
Specifications
| Product | |
|---|---|
| Brand | Simpson Electric |
| Input Range | 0-200AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class |
| Output | 0-5AAC |
| Tariff Code | 9030.90.8823 |
| ECCN | EAR99 |
| Insulation Level | 720V. Tested 3kV 50Hz for 1 min. |

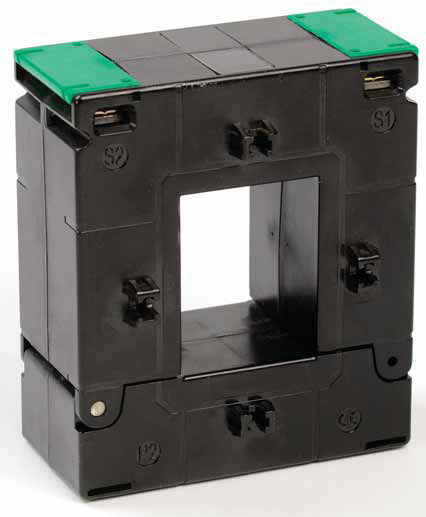

| Current Transformers | |
|---|---|
| CT Burden VA Max. | 2.5VA |
| CT Ratio | 200:5A |
| CT Window | 23mm x 33mm |
