FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V
- Use with GIMA Series meters
- Reduce high AC current signals
- Hardware not furnished with the current transformer
- Hardware required:

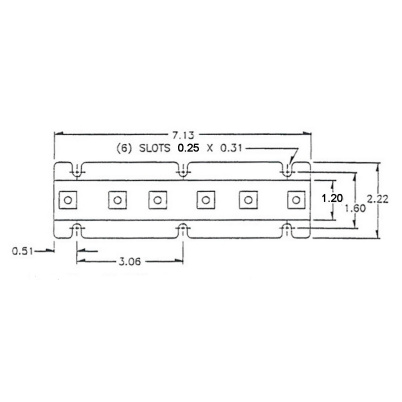

- (6) 1/4" washers
- (6) 1/4" bolts and nuts
Specifications
| Product | |
|---|---|
| Brand | Simpson Electric |
| Input Range | 0-100AAC |
| Input Frequency | 60Hz |
| Accuracy | 2% Class |
| Output | 0-5AAC |
| Tariff Code | 9030.90.8823 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 2.0VA |
| CT Ratio | 100:5A |

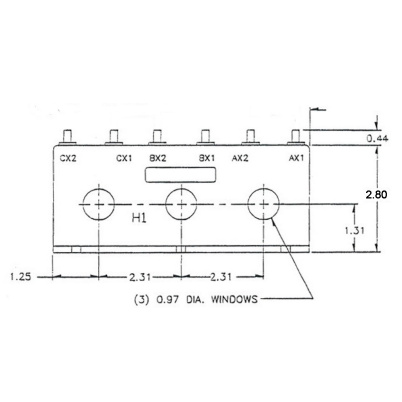

| CT Window | 0.97" Diameter |
