APPLICATION:
- Generally for Ammeter use only.
FREQUENCY:
- 50-400 Hz.
INSULATION LEVEL:
- 600 Volts, 10 kV BIL full wave.

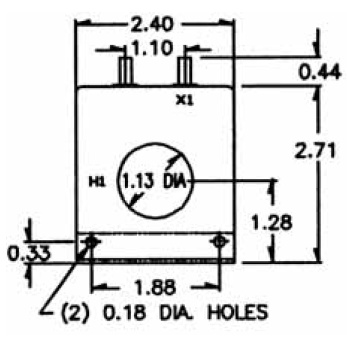

Window:
- 1.13"
Approximate Weight:
- 0.5 Lbs.
Connections:
- Terminal are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
- Flexible leads are UL 1015, 105°C, CSA approved, #16 AWG, 24" long.
- Non-standard, lead length can be special ordered.
- SHT and SFT case styles also available as SHL or SFL with Leads

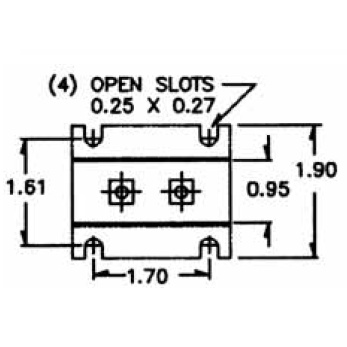

- Mounting bracket for Model 2SHT part 59-0217
Specifications
| Product | |
|---|---|
| Brand | Crompton |
| Model | 2 |
| Input Range | 0-300AAC |
| Input Frequency | 60Hz |
| Output | 0-5AAC |
| Tariff Code | 8504.31.3900 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 8.0VA |
| CT Ratio | 300:5A |
| CT Window | 1.13" Diameter |
