2SFT-500 EI

Model 2SFT 50:5A Ratio CT, 2VA, 1.13" Window, Electromagnetic Industries

89.52 89.52 USD 94.23


  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Burden VA Max.
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Window

This combination does not exist.

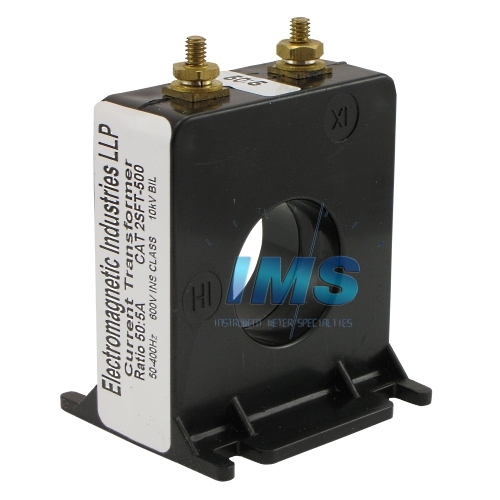

Model 2SFT (1.13 inch window diameter and a square case with molded feet and terminals)

  • Application: Generally used with ammeters.
  • Frequency: 50 - 400Hz
  • Insulation Level: 600 Volts, 10kv BIL Full Wave
  • Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each. Terminals are torque tested to 11 inch-lb.
  • Approximate weight: 0.5 lbs


Brand Electromagnetic Industries
Model 2
Input Range 0-50AAC
Input Frequency 60Hz
Accuracy 3% Class
Output 0-5AAC
Tariff Code 8504.31.0000
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Burden VA Max. 2.0VA
CT Continuous Thermal Rating Factor 1.0 at 30°C amb.
CT Ratio 50:5A
CT Window 1.13" Diameter
