APPLICATION: Generally used with ammeters.
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V, 10kV BIL full wave
STANDARDS: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506
- Flexible leads available for all case configurations. Flexible leads are UL 1015 105°C, C.S.A. approved #16 AWG, 24" long standard length. Non-standard lengths are available upon request.
- Terminals are brass. Stud and Female options with hardware available. (Note: terminals are only available on the square case configuration.)
- Approximate weight: 0.5 lbs
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 2 |
| Input Range | 0-40AAC |
| Input Frequency | 60Hz |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Current Transformers | |
|---|---|
| CT Continuous Thermal Rating Factor | 1.0 at 30°C amb. |
| CT Ratio | 40:5A |

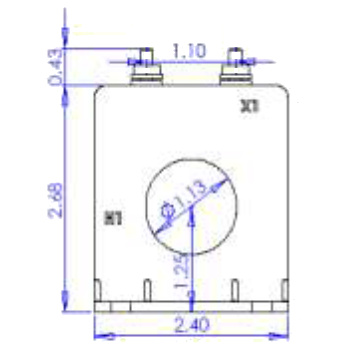

| CT Window | 1.13" Diameter |
