2SFT-201 EI

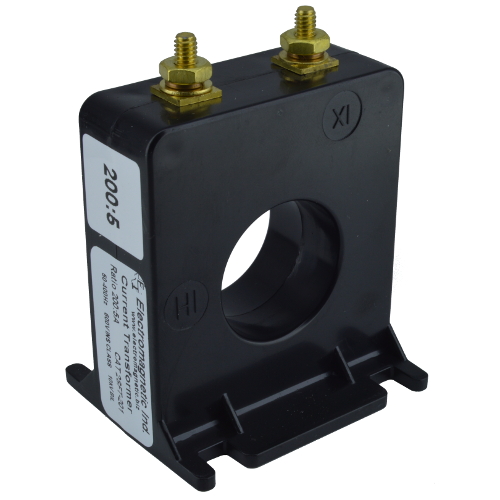

Model 2SFT 200:5A Ratio CT, 4VA, 1.13" Window, Electromagnetic Industries
Model 2SFT (1.13 inch window diameter and a square case with molded feet and terminals)
- Application: Generally used with ammeters.
- Frequency: 50 - 400Hz
- Insulation Level: 600 Volts, 10kv BIL Full Wave
- Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each. Terminals are torque tested to 11 inch-lb.
- Approximate weight: 0.5 lbs
Specifications
Product | |
---|---|
Brand | Electromagnetic Industries |
Model | 2 |
Input Range | 0-200AAC |
Input Frequency | 60Hz |
Accuracy | 1% Class |
Output | 0-5AAC |
Tariff Code | 8504.31.0000 |
ECCN | EAR99 |
Insulation Level | 600V, 10kV BIL full wave |
Current Transformers | |
---|---|
CT Burden VA Max. | 4.0VA |
CT Continuous Thermal Rating Factor | 1.0 at 30°C amb. |
CT Ratio | 200:5A |
CT Window | 1.13" Diameter |
