2SFT-151 EI

https://www.metersales.com/web/image/product.template/32527/image_1920?unique=8d174ad

Model 2SFT 150:5A Ratio CT, 4VA, 1.13" Window, Electromagnetic Industries

89.52 89.52 USD 94.23

94.23

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Burden VA Max.
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Window

This combination does not exist.

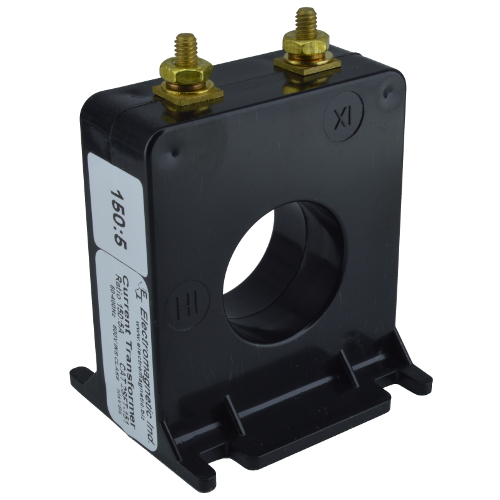

Model 2SFT (1.13 inch window diameter and a square case with molded feet and terminals)

  • Application: Generally used with ammeters.
  • Frequency: 50 - 400Hz
  • Insulation Level: 600 Volts, 10kv BIL Full Wave
  • Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each. Terminals are torque tested to 11 inch-lb.
  • Approximate weight: 0.5 lbs

Specifications

Product
Brand Electromagnetic Industries
Model 2
Input Range 0-150AAC
Input Frequency 60Hz
Accuracy 1% Class
Output 0-5AAC
Tariff Code 8504.31.0000
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Burden VA Max. 4.0VA
CT Continuous Thermal Rating Factor 1.0 at 30°C amb.
CT Ratio 150:5A
CT Window 1.13" Diameter
