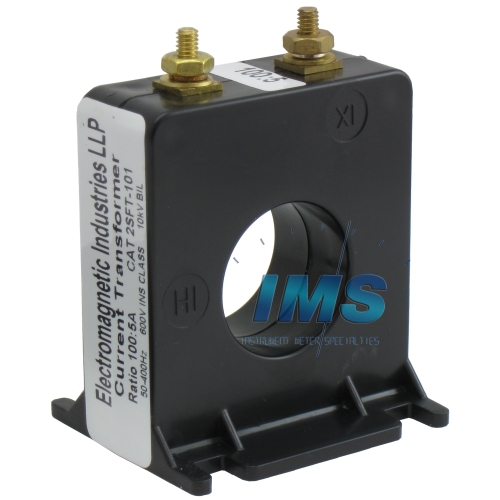

Model 2SFT (1.13 inch window diameter and a square case with molded feet and terminals)
- Application: Generally used with ammeters.
- Frequency: 50 - 400Hz
- Insulation Level: 600 Volts, 10kv BIL Full Wave
- Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each. Terminals are torque tested to 11 inch-lb.
- Approximate weight: 0.5 lbs
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 2 |
| Input Range | 0-100AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 2.0VA |
| CT Continuous Thermal Rating Factor | 1.0 at 30°C amb. |
| CT Ratio | 100:5A |
| CT Window | 1.13" Diameter |
