Omega ANSI Current Transformer Series
The ANSI Metering Class current transformers are intended for power monitoring applications where high accuracy and minimum phase angle error are required. They are specially designed to be compliant with relevant ANSI standards.
Specifications for Omega 30 Series, 2SHT 2SFT 2RL 2DRL 2DARL
- Applicable Standard: ANSI/IEEE C57.13
- Case: 10% glass filled polycarbonate, flame retardant grades classified UL 94V-0.
- Frequency : 50-400 Hz.(UL testing done at 60Hz)
- Insulation Level : (System Voltage 600V)10KV BIL full wave.

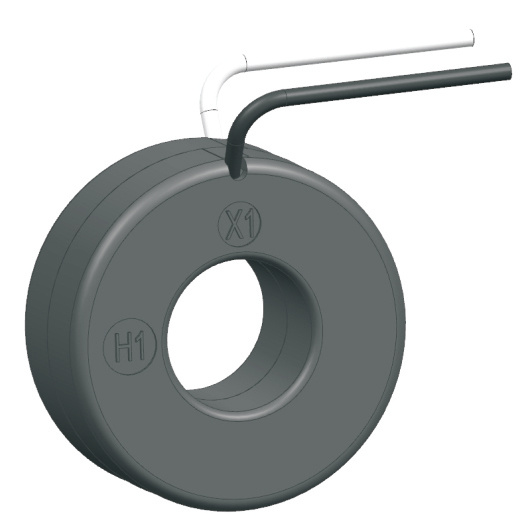

- Flexible leads are UL 1015, 105°C, CSA approved, #16AWG, 24"long without lugs (For RL type).Non-standard length to be specified for RL type if required.
- For all the SHT & SFT types terminals are brass studs size 8-32 with one flat washer,lock washer & regular nut.
- All the SHT & SFT models also available as SHL & SFL with leads.(UL approval not applicable for SHL/SFL type).
- For SHT type- mounting bracket kit can be provided on request order code SPAR-SA00-2085.
- Ambient temperature: -30°C to +55°C (RH up to 95% non-condensing).
- Storage temperature : -50°C...+80°C.
Specifications
| Product | |
|---|---|
| Brand | Sifam Tinsley |
| Model | 2 |
| Input Range | 0-75AAC |
| Input Frequency | 60Hz |
| Accuracy | 2% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.07.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 2.0VA |
| CT Continuous Thermal Rating Factor | 1.0 at 30°C amb. |
| CT Ratio | 75:5A |
| CT Window | 1.05" Diameter |
