APPLICATION:
- Generally for Ammeter use only
FREQUENCY:
- 50-400 Hz.
INSULATION LEVEL:
- 600 Volts, 10 kV BIL full wave.
APPROXIMATE WEIGHT:
- 0.5 lbs.
CONNECTIONS
-Flexible Leads are UL 1015 105°C, CSA approved #16 AWG, 24" long
-Non-standard length to be specified
-Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
-SHT and SFT case styles also available as SHL or SFL with Leads
-Mounting bracket for Model 2SHT part 59-0217
Specifications
| Product | |
|---|---|
| Brand | Crompton |
| Model | 2 |
| Input Range | 0-75AAC |
| Input Frequency | 60Hz |
| Accuracy | 2% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.31.3900 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 2.0VA |
| CT Continuous Thermal Rating Factor | 1.0 at 30°C amb. |
| CT Ratio | 75:5A |

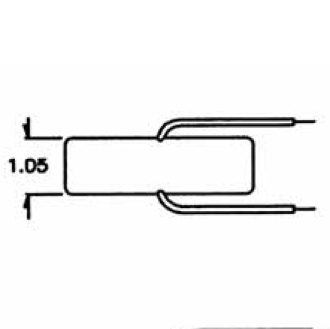

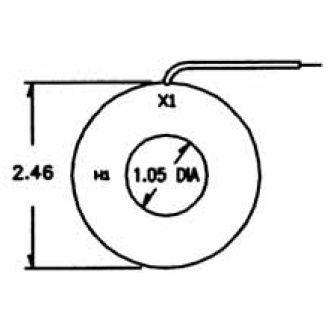

| CT Window | 1.05" Diameter |
