2RL-600 EI

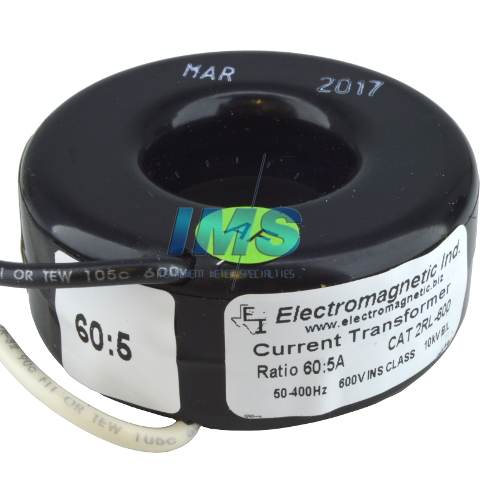

Model 2RL 60:5A Ratio CT, Window 1.05", Electromagnetic Industries

44.76 44.76 USD 44.76

47.12

  • Brand
  • Model
  • Input Frequency
  • Input Range
  • Accuracy
  • Output
  • Burden VA Max.
  • CT Ratio
  • CT Window
  • Tariff Code
  • ECCN

This combination does not exist.

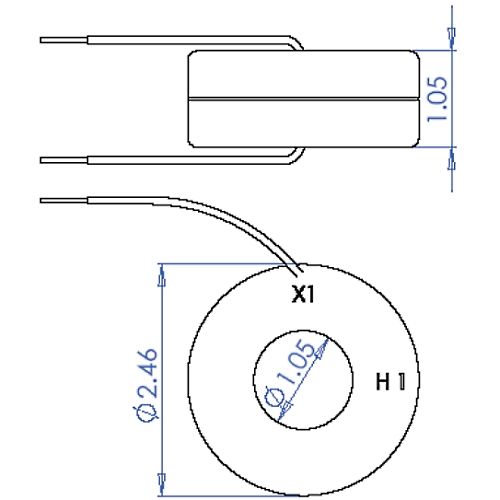

Model 2RL (1.05 inch window diameter and a thin round case with 24 inch leads)

  • Application: Generally used with ammeters.
  • Frequency: 50 - 400Hz
  • Insulation Level: 600 Volts, 10kv BIL Full Wave
  • Flexible leads are UL 1015 105 °C, C.S.A. approved #16 AWG, 24 inch long standard length. Non-standard lengths can be quoted upon request.

Specifications

Brand Electromagnetic Industries
Model 2
Input Frequency 60Hz
Input Range 0-60AAC
Accuracy 2% Class
Output 0-5AAC
Burden VA Max. 2.0VA
CT Ratio 60:5A
CT Window 1.05" Diameter
Tariff Code 8504.31.0000
ECCN EAR99
