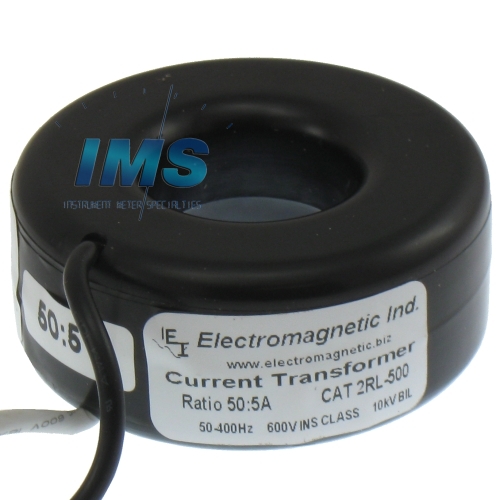

Model 2RL (1.05 inch window diameter and a thin round case with 24 inch leads)
- Application: Generally used with ammeters.
- Frequency: 50 - 400Hz
- Insulation Level: 600 Volts, 10kv BIL Full Wave
- Flexible leads are UL 1015 105 °C, C.S.A. approved #16 AWG, 24 inch long standard length. Non-standard lengths can be quoted upon request.
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 2 |
| Input Range | 0-50AAC |
| Input Frequency | 60Hz |
| Accuracy | 3% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 2.0VA |
| CT Continuous Thermal Rating Factor | 1.0 at 30°C amb. |
| CT Ratio | 50:5A |
| CT Window | 1.05" Diameter |
