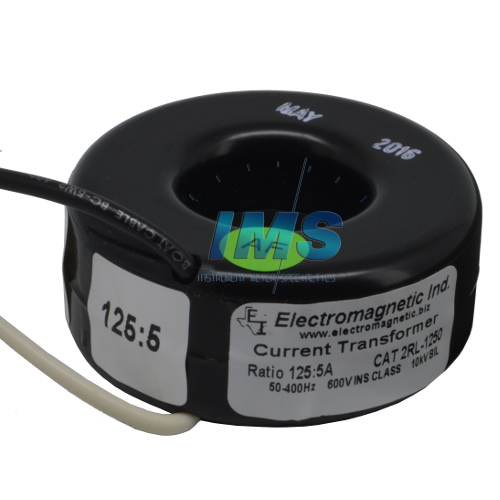

2RL-1250 EI
Model 2RL 125:5A Ratio CT, 2.5VA, 1.05" Window, Electromagnetic Industries
Model 2RL (1.05 inch window diameter and a thin round case with 24 inch leads)
- Application: Generally used with ammeters.
- Frequency: 50 - 400Hz
- Insulation Level: 600 Volts, 10kv BIL Full Wave
- Flexible leads are UL 1015 105 °C, C.S.A. approved #16 AWG, 24 inch long standard length. Non-standard lengths can be quoted upon request.
Specifications
Product | |
---|---|
Brand | Electromagnetic Industries |
Model | 2 |
Input Range | 0-125AAC |
Input Frequency | 60Hz |
Accuracy | 1% Class |
Output | 0-5AAC |
Tariff Code | 8504.31.0000 |
ECCN | EAR99 |
Insulation Level | 600V, 10kV BIL full wave |
Current Transformers | |
---|---|
CT Burden VA Max. | 2.5VA |
CT Continuous Thermal Rating Factor | 1.0 at 30°C amb. |
CT Ratio | 125:5A |
CT Window | 1.05" Diameter |
