254-TXX-L-02-030
Model 254 57.7-277V L-N (100-480V L-L) 0-1/0-5AAC 1P2W to 3P4W, Universal Programmable Transducer, USB, RS-485, 2 Configurable Analog Outputs, Pulse/Alarm, 12-48VDC Aux., Paladin Advantage, Crompton

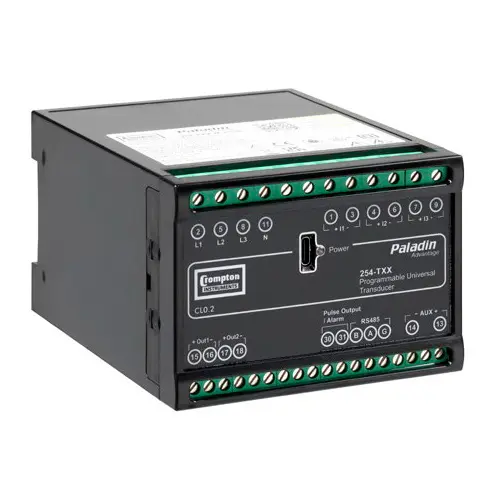

CROMPTON INSTRUMENTS 254-TXX PALADIN ADVANTAGE UNIVERSAL PROGRAMMABLE TRANSDUCER
TE Connectivity’s (TE) Crompton Instruments Paladin Advantage, 254-TXX is a programmable transducer which provides measurement, isolation and conversion of all main electrical parameters into an industry standard DC output signal. The 254-TXX can be used in single and three-phase balanced or unbalanced three or four-wire electrical systems.
The 254-TXX has an accuracy of CL0.2 and includes RS485 Modbus RTU communications protocol and pulse/alarm output as standard. The 254-TXX is an accurate device for the conversion of all main electrical parameters into 2 or 4 fully isolated Voltage or mA outputs.
Designed, developed and manufactured in the UK, with an integrated microprocessor for exceptional handling of distorted waveforms. The 254-TXX is ideal for low, medium and high voltage applications and provides a high protection against continuous and short circuit protection as well as galvanically isolated inputs and outputs.
RELEVANT STANDARDS AND TEST REPORTS
PALADIN ADVANTAGE
- IEC 61326
- IEC 61010-1
- IEC62053-21
- EN60688
- RoHS Compliant
- UL Certified
Key Features
- DIN-rail enclosure
- Measurement, isolation & conversion of up to 31 electrical parameters
- RS485 Modbus RTU protocol as standard
- Ethernet or USB models available
- Versatile programmable relay output
- Programmable VT/CT ratio
- True rms measurement
- User programmable configuration
- Linear or Dual Slope Outputs
- User friendly programming interface
The Paladin 254-TXX is a programmable Transducer.
For initial programming or reprogramming of an existing product please use the Crompton Instruments Transducer Configurator software.
Make sure that you have the latest version of Transducer Configurator software installed on your computer. You can download the latest version at:
Technical Specifications |
|
Input |
|
| Nominal input voltage | 57.7 V – 277 V AC L-N (100 – 480 V L-L) 480 V MAX |
| Max. Continuous input overload voltage | 120% of nominal |
| Max. Short duration input voltage (300 msec) | 2 x nominal voltage |
| Nominal input voltage burden | < 0.1 VA per phase |
| Nominal input current | 1A AC or 5A AC rms |
| Nominal input current burden | < 0.1 VA per phase |
| Max. Continuous input overload current | 2 x nominal current |
| Max. Short duration input current (300 msec) | 20 x nominal current |
Auxiliary |
|
| Operating range | 100 – 250 V AC/DC (+/- 20%) 45 – 65 Hz or 12 – 48 V DC (+/- 20%) |
| Supply burden | <15VA / <5VA |
Accuracy |
|
| Voltage (V) | < 0.2% |
| Current (A) | < 0.2% |
| Neutral current calculated (A) | < 1.0% |
| Frequency (Hz) | < 0.1 Hz |
| Power factor (PF) | 1% of unity |
| Active power (W) | +/- 0.2% of range |
| Reactive power (VAr) | +/- 0.2% of range |
| Apparent power (VA) | +/- 0.2% of range |
| Active energy (kWh) | Class 0.2 (IEC 62053-21) |
| Reactive energy (kVArh) | +/- 0.2% of range |
| Response time | <200 msec |
Range |
|
| Voltage (V) | 5% to 120% for nominal |
| Current (A) | 5% to 120% of nominal |
| Frequency | 45 – 65 Hz |
| THD | 2% up to 63rd harmonic |
Outputs |
|
| Analogue output | 0... +/- 1 mA 0... +/- 5 mA 0... +/- 10 mA 0... +/- 20 mA 4... +/- 20 mA 0... +/- 1 V 2... +/- 10 V All programmable |
| Pulse/alarm output relay | User defined solid state relay |
| Contact rating | 100 mA @ 50 V |
| Pulse duration | 20 msec to 300 msec |
| Alarm delay | 0 – 120 secs |
| Alarm hysteresis | 1 – 99% |
| Alarm type | User Defined Solid State Relay |
| Communication protocol | RS485 Modbus RTU (USB / Ethernet Options) |
| Type | 2-wire half duplex |
| Baud rate | 2400, 4800, 9600, 19200, 38400 |
Enclosure |
|
| Enclosure style | DIN-rail mounting |

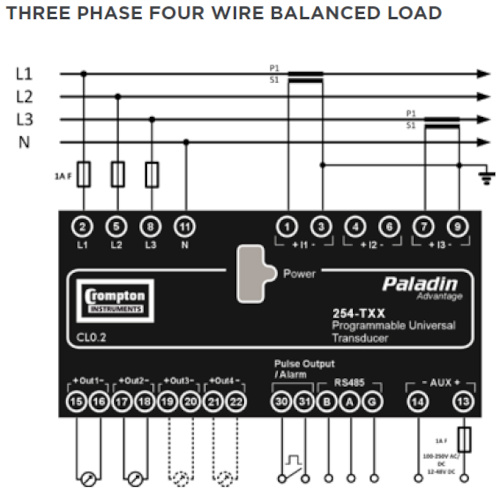

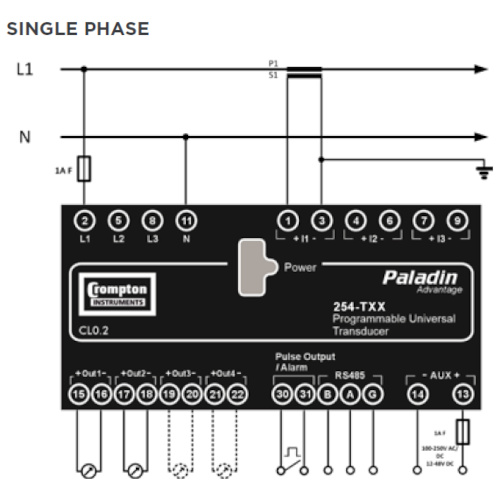

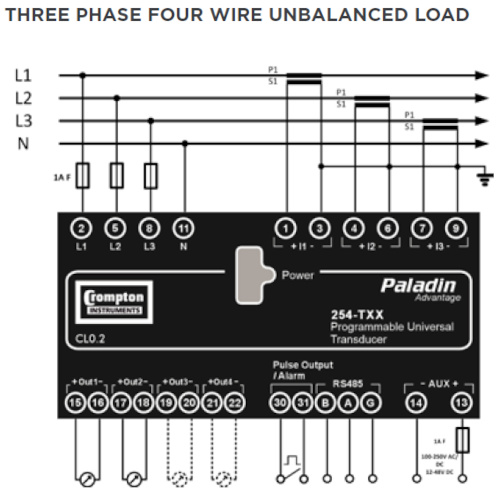

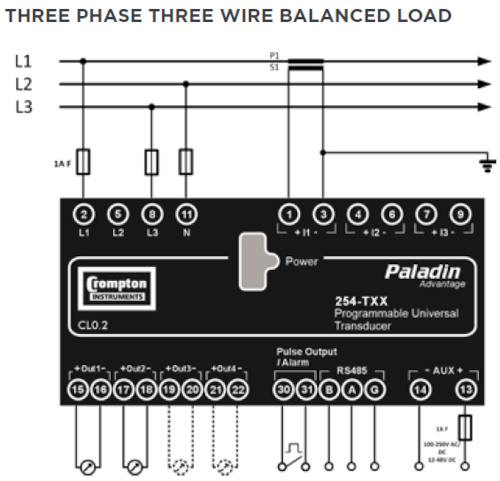

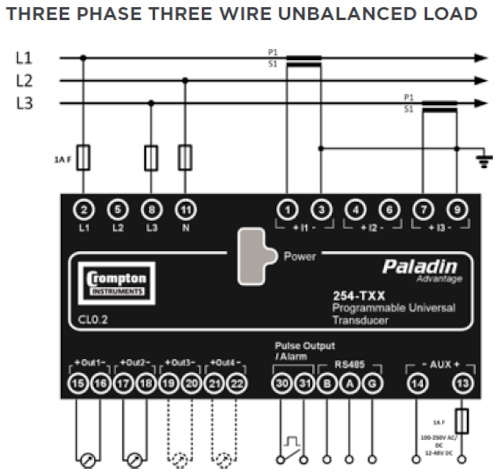

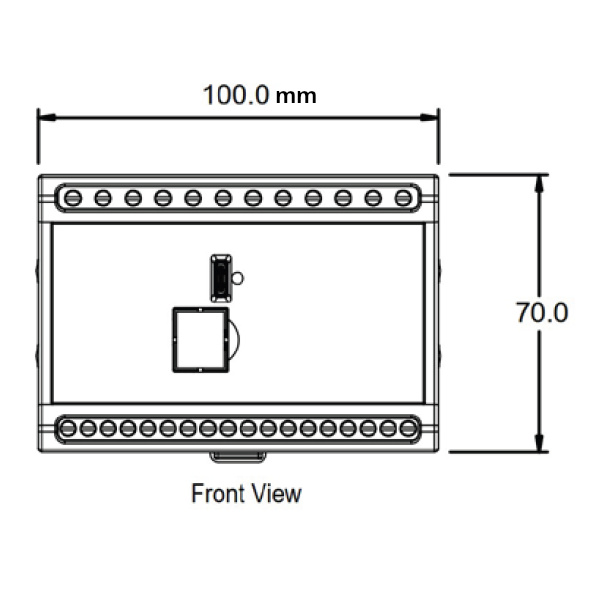

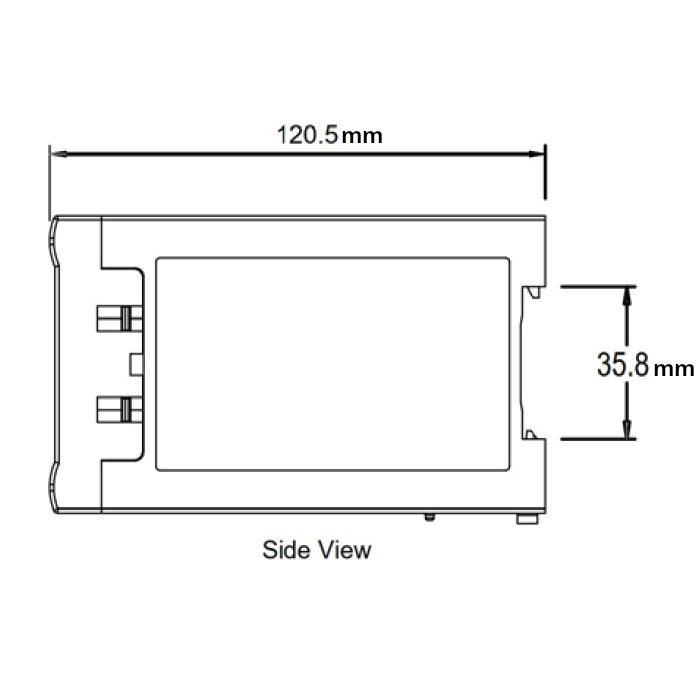

| Dimensions | 120(H) x 100(W) x 70(D) mm |
| Material | Polycarbonate to UL94-V0 |
| Weight | 0.50 kg |
| Terminals | Shrouded screw-clamp 0.05 – 4 mm wire |
Environment |
|
| Operating temperature | -10°C to +55°C |
| Storage temperature | -30°C to +70°C |
| Relative humidity | 0 – 90% non-condensing |
| Shock | 30 g in 3 planes |
| Vibration | 10 Hz to 50 Hz |
| Dielectric voltage | Withstand test 4 kV, 50 Hz for 1 minute between auxiliary/input/output |
Parameter |
Description |
Analogue |
| V1 | Phase 1 Voltage | ✓ |
| V2 | Phase 2 Voltage | ✓ |
| V3 | Phase 3 Voltage | ✓ |
| I1 | Phase 1 Current | ✓ |
| I2 | Phase 2 Current | ✓ |
| I3 | Phase 3 Current | ✓ |
| W1 | Phase 1 Watts | ✓ |
| W2 | Phase 2 Watts | ✓ |
| W3 | Phase 3 Watts | ✓ |
| Var1 | Phase 1 Vars | ✓ |
| Var2 | Phase 2 Vars | ✓ |
| Var3 | Phase 3 Vars | ✓ |
| VA1 | Phase 1 VA | ✓ |
| VA2 | Phase 2 VA | ✓ |
| VA2 | Phase 3 VA | ✓ |
| VLL12 | Phase 1-2 Voltage | ✓ |
| VLL23 | Phase 2-3 Voltage | ✓ |
| VLL31 | Phase 3-1 Voltage | ✓ |
| PF1 | Power Factor Phase 1 | ✓ |
| PF2 | Power Factor Phase 2 | ✓ |
| PF3 | Power Factor Phase 3 | ✓ |
| PA1 | Phase Angle Phase 1 | ✓ |
| PA2 | Phase Angle Phase 2 | ✓ |
| PA3 | Phase Angle Phase 3 | ✓ |
| VLN Avg | Average L/N Voltage | ✓ |
| VLL Avg | Average L/L Voltage | ✓ |
| I Sum | System Current Total | ✓ |
| I Avg | Average System Current | ✓ |
| W Sum | System Power Total | ✓ |
| VAr Sum | System Reactive Power Total | ✓ |
| VA Sum | System VA Total | ✓ |
| Sys Hz | System Frequency | ✓ |
| PF Avg | System Power Factor | ✓ |
| THD V1 | Phase 1 V THD % | ✓ |
| THD V2 | Phase 2 V THD % | ✓ |
| THD V3 | Phase 3 V THD % | ✓ |
| THD I1 | Phase 1 I THD % | ✓ |
| THD I2 | Phase 2 I THD % | ✓ |
| THD I3 | Phase 3 I THD % | ✓ |
Specifications
| Brand | Crompton |
| Model | 254-TXX |
| Input Range | 1P2W 57.7-277VAC L-N, 0-1A or 0-5AAC, 3P3W 100-480VAC L-L, 0-1A or 0-5AAC, 3P4W 100-480VAC L-L (57.7-277V L-N), 0-1A or 0-5AAC |
| Input Frequency | 60Hz, 50Hz |
| Output | 0-1mADC, 0-10mADC, 0-20mADC, 4-20mADC, 0-5mADC, 0-1VDC, 0-10VDC, Pulse |
| Aux. Power Supply | Switching ~12-48VDC |
| Tariff Code | 8543.20.0000 |
| ECCN | EAR99 |
| Communications | RS-485, USB |
