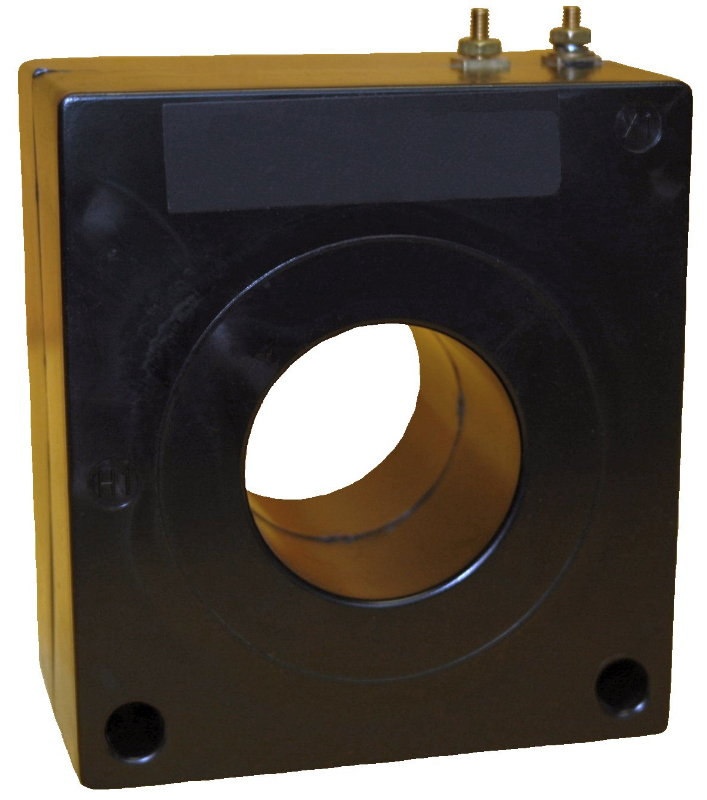

APPLICATION: Relaying and metering.
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.

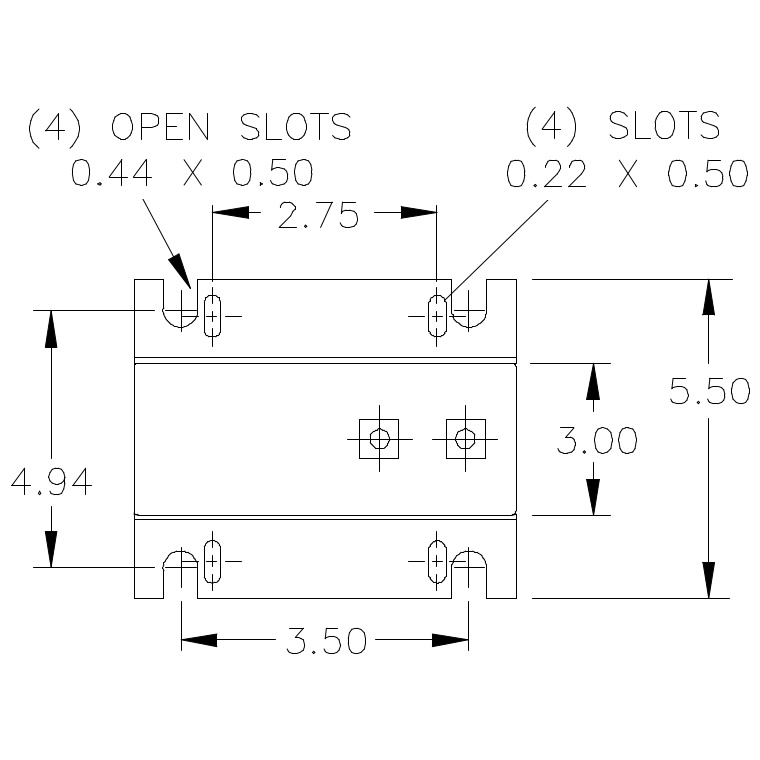

Order mounting bracket kit 0221B00541 separately.
Multi-ratios available upon request.
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 23 |
| Input Range | 0-250AAC |
| Input Frequency | 60Hz |
| Accuracy | 0.3 B0.1, 0.3 B0.2, 0.6 B0.5, 0.6 B0.9, 1.2 B1.8 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Continuous Thermal Rating Factor | 2.0 at 30°C amb., 1.5 at 55°C amb. |
| CT Ratio | 250:5A |
| CT Relay Class | C20 |
| CT Secondary Winding Resistance | 0.143Ω (143mΩ) @ 75°C |

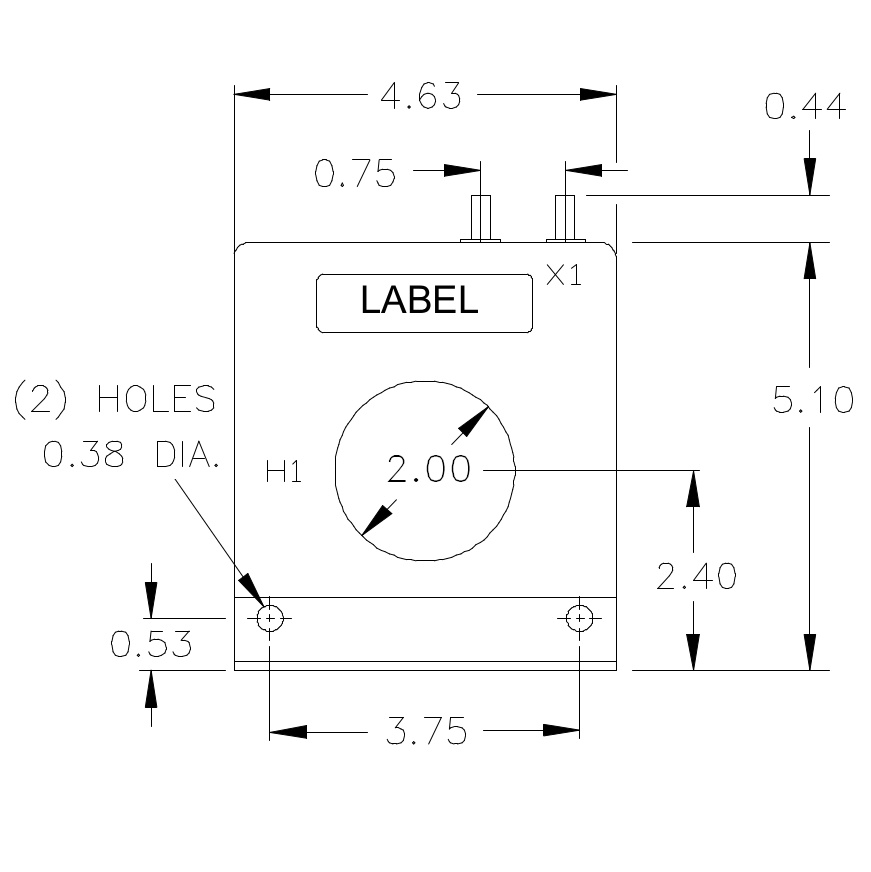

| CT Window | 2.00" Diameter |
