203-252 ITI

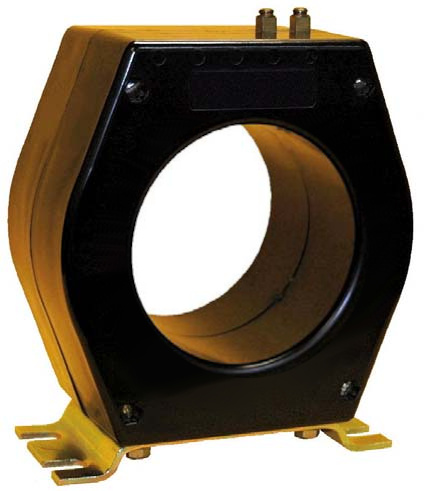

Model 203 2500:5A Ratio CT, C200 Relay Class, 5.25" Window, ITI
Instrument Transformer, Inc. Model 203
APPLICATION: Relaying and metering.
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V, 10kV BIL full wave
- Terminals are brass screws No. 10-32 with one flatwasher ad lockwasher.
- Multi-ratios available on request.
- Excitation data available upon request.
- Approximate weight: 26 lbs
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
Product | |
---|---|
Brand | Instrument Transformers Inc |
Model | 203 |
Input Range | 0-2500AAC |
Input Frequency | 60Hz |
Accuracy | 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8 |
Output | 0-5AAC |
Tariff Code | 8504.31.4035 |
ECCN | EAR99 |
Insulation Level | 600V, 10kV BIL full wave |
Current Transformers | |
---|---|
CT Continuous Thermal Rating Factor | 1.0 at 30°C amb., 0.8 at 55°C amb. |
CT Ratio | 2,500:5A |
CT Relay Class | C200 |
CT Secondary Winding Resistance | 1.493Ω (1493mΩ) @75°C |

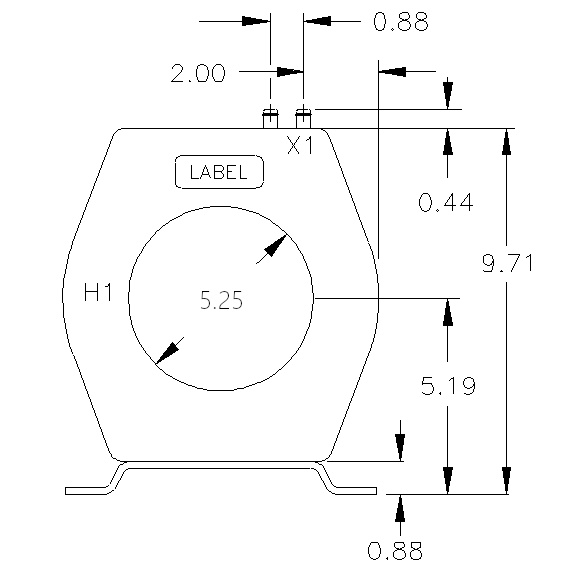

CT Window | 5.25" Diameter |
