APPLICATION: Metering
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V, 10kV BIL full wave
- SHT terminals are brass studs No. 8-32 with one flatwasher, lockwasher, and regular nut.
- RT terminals are brass studs No. 10-32 with one flatwasher, lockwasher, and regular nut.
- Flexible leads are UL 1015, 105°C, CSA approved, #16 AWG, 24" long.
- Non-standard lead length can be specified.
- Order mounting bracket kit 0221B00183 separately for model 19SHT.
- Order bus bar mounting kit 0221A26075 separately, factory installed.
- Approximate weight: 3 lbs
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |

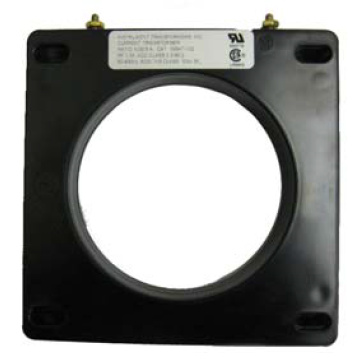

| Model | 19 |
| Input Range | 0-1000AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class, 0.3 B0.1, 0.3 B0.2, 0.6 B0.5, 0.6 B0.9 |
| Output | 0-5AAC |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 30.0VA |
| CT Continuous Thermal Rating Factor | 1.33 at 30°C amb., 1.0 at 55°C amb. |
| CT Ratio | 1,000:5A |
| CT Secondary Winding Resistance | 0.242Ω (242mΩ) @ 75°C |
| CT Window | 4.25" Diameter |
