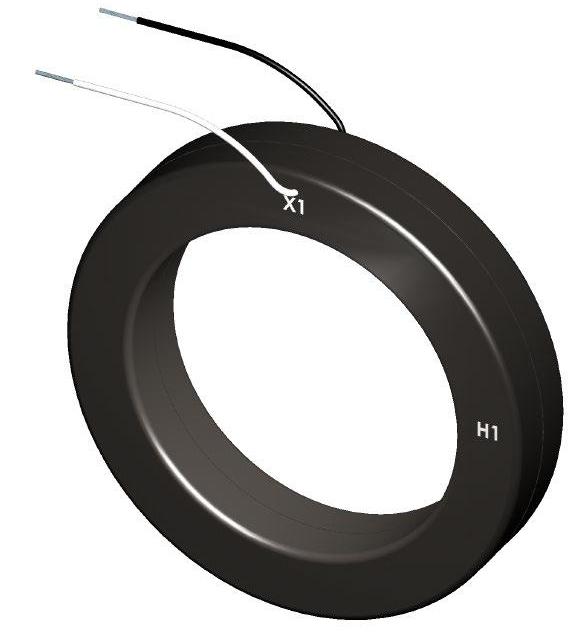

APPLICATION: Used with ammeters, wattmeters, and cross current compensation.
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V, 10kV BIL full wave
- Flexible leads available for all case configurations.
- Flexible leads are UL 1015 105°C, C.S.A. approved #16 AWG, 24" long standard length.
- Non-standard lengths are available upon request.
- Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer, and one nut each.
- Terminals are only available on the square case configuration.
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 19 |
| Input Range | 0-900AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class, 0.3 B0.1, 0.3 B0.2, 0.6 B0.5, 0.6 B0.9 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 30.0VA |
| CT Ratio | 900:5A |
| CT Window | 4.25" Diameter |
