CURRENT TRANSFORMERS

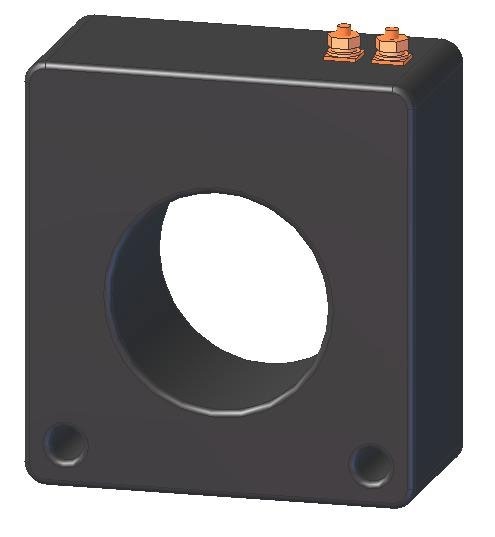

Model 194 (Window Size: 2.50” Diameter)
Application: Used with ammeters, watt meters and cross current compensation.
Frequency: 50-400 Hz
Insulation Level: 600 Volts, 10kV BIL Full Wave
Standards: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506
- Flexible leads available for all case configurations. Flexible leads are UL 1015 105˚C, C.S.A approved #16 AWG, 24” long standard length. Non-standard lengths are available upon request.
- Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each. Terminals are only available on the square case configuration.
- Mounting brackets kits are available.
- Approximate weight: 3.5 lbs.
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 194 |
| Input Range | 0-800AAC |
| Input Frequency | 60Hz |
| Accuracy | 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Continuous Thermal Rating Factor | 1.0 at 30°C amb., 0.8 at 55°C amb. |
| CT Ratio | 800:5A |
| CT Secondary Winding Resistance | 0.302Ω (302mΩ) @ 75°C |
| CT Window | 2.50" Diameter |
| CT Relay Class | C10 |
