CURRENT TRANSFORMERS

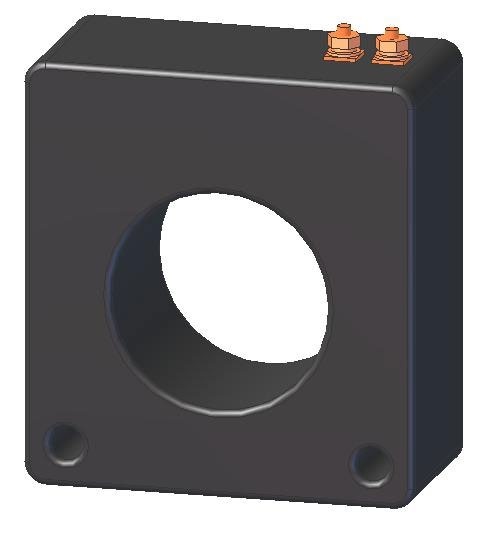

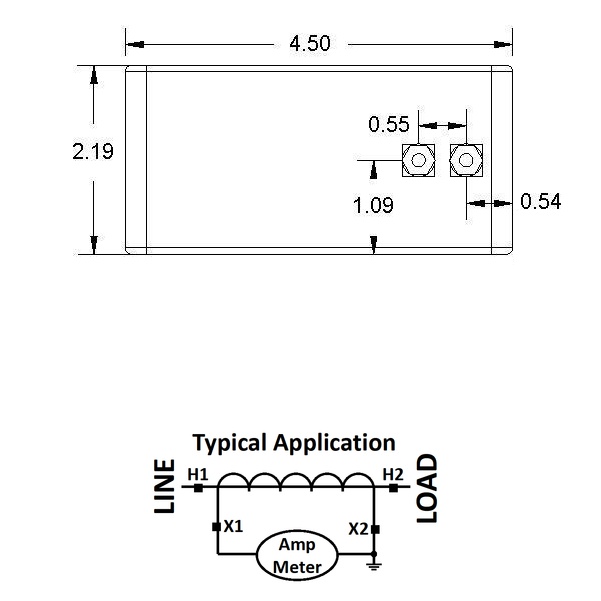

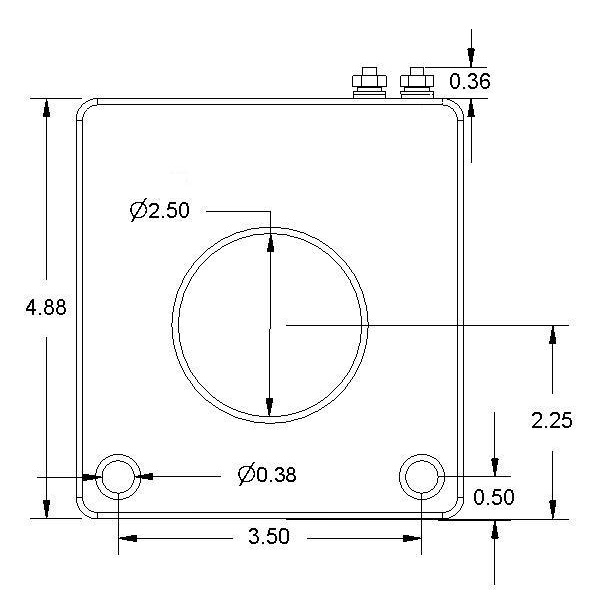

Model 194 (Window Size: 2.50” Diameter)

Application: Used with ammeters, watt meters and cross current compensation.
Frequency: 50-400 Hz
Insulation Level: 600 Volts, 10kV BIL Full Wave
Standards: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506

  • Flexible leads available for all case configurations. Flexible leads are UL 1015 105˚C, C.S.A approved #16 AWG, 24” long standard length. Non-standard lengths are available upon request.
  • Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each.  Terminals are only available on the square case configuration.
  • Mounting brackets kits are available.
  • Approximate weight: 3.5 lbs.

Model 194 Datasheet

Specifications

Brand Electromagnetic Industries
Model 194
Input Range 0-100AAC
Input Frequency 60Hz
Accuracy 1.2 B0.1, 2.4 B0.2, 4.8 B0.5
Output 0-5AAC
CT Ratio 100:5A
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 2.0 at 55°C amb.
CT Window 2.50" Diameter
CT Secondary Winding Resistance 0.033Ω (33mΩ) @ 75°C
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.4035
ECCN EAR99
