189-080 EI

https://www.metersales.com/web/image/product.template/30315/image_1920?unique=aa060df

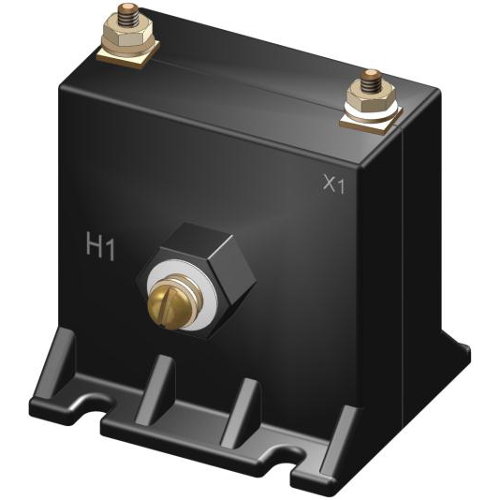

Model 189 80:5A Ratio CT, Primary Wound, Electromagnetic Industries

$ 482.39 482.39 USD $ 507.78

$ 507.78

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio

This combination does not exist.

Contact Us

​

The Model 189 is a low ratio wound primary current transformer, suitable for primary current up to 100 amperes. The table in the datasheet lists the most common current ratings. Primary terminals for the Model 189 for rations of 40:5 and above are 3/8-16 brass studs with one lock washer and regular nut.

Specifications

Product
Brand Electromagnetic Industries
Model 189
Input Range 0-80AAC
Input Frequency 60Hz
Accuracy 0.6 B0.1, 0.6 B0.2
Output 0-5AAC
Tariff Code 8504.31.0000
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 1.33 at 30°C amb., 1.0 at 55°C amb.
CT Ratio 80:5A
