- APPLICATION: Generally used for ammeters and watt meters
- FREQUENCY: 50-400 Hz
- INSULATION LEVEL: 600V BIL 10kV full wave
- CONTINUOUS THERMAL CURRENT RATING FACTOR: 1.33 at 30°C amb., 1.0 at 55°C amb.

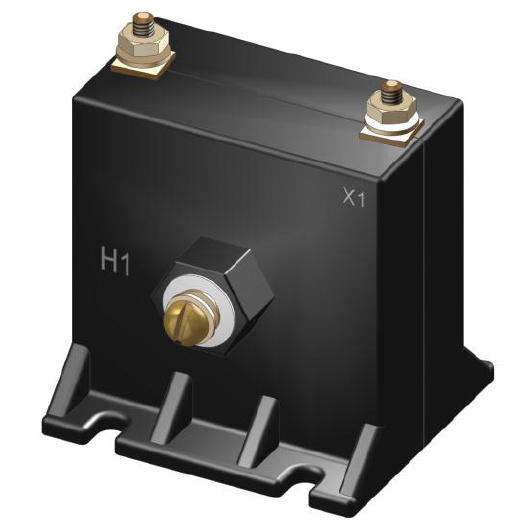

- Primary terminals for the Model 189 for ratios of 30:5 and below are No. 10-32 brass screws with one lock washer.
- Approximate weight: 0.75 lbs
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 189 |
| Input Range | 0-15AAC |
| Input Frequency | 60Hz |
| Accuracy | 0.6 B0.1, 0.6 B0.2 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Continuous Thermal Rating Factor | 1.33 at 30°C amb., 1.0 at 55°C amb. |
| CT Ratio | 15:5A |
