180SHT-122 ITI

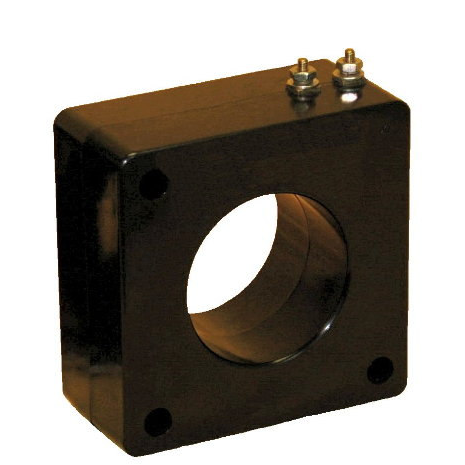

Model 180SHT 1200:5A Ratio CT, 125VA, 2.5" Window, ITI

$ 231.48 231.48 USD $ 231.48

Brand
Model
Input Range
Input Frequency
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Output
Tariff Code
ECCN
Insulation Level
CT Burden VA Max.
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor
CT Ratio
CT Secondary Winding Resistance
CT Window

This combination does not exist.

Application: Metering
Frequency: 50 - 400Hz
Insulation Level: 600 Volts, 10kv BIL Full Wave
Terminals are brass studs No. 8-32 with one flatwasher, lockwasher, and regular nut.
Flexible leads are UL 1015 105 ̊C, C.S.A approved, #16 AWG 24" long.
Non standard lead length can be quoted.
Mounting bracket kit 0221B00777 available separately for Model 180SHT.
Approximate weight: 3.5 lbs

Specifications

Product
Brand	Instrument Transformers Inc
Model	180
Input Range	0-1200AAC
Input Frequency	60Hz
Accuracy	1% Class, 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output	0-5AAC
Tariff Code	8504.31.4035
ECCN	EAR99
Insulation Level	600V, 10kV BIL full wave

Current Transformers
CT Burden VA Max.	125.0VA
CT Continuous Thermal Rating Factor	1.33 at 30°C amb., 1.0 at 55°C amb.
CT Ratio	1,200:5A
CT Secondary Winding Resistance	0.303Ω (303mΩ) @ 75°C
CT Window	2.50" Diameter
