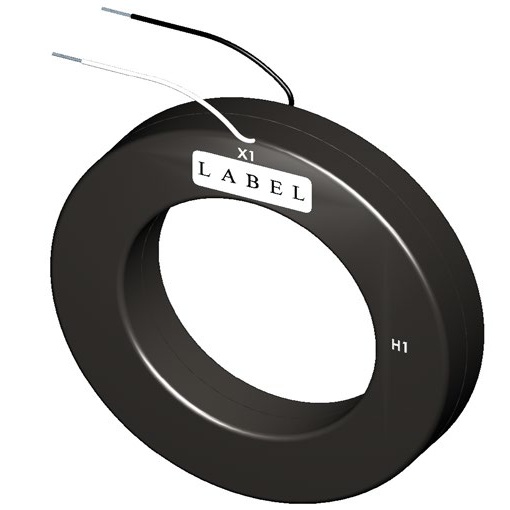

Model 170RL (4.25 inch window diameter and a thin round case with 24 inch leads)
- Application: Metering
- Frequency: 50 - 400Hz
- Insulation Level: 600 Volts, 10kv BIL Full Wave
- Standards: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506
- Flexible leads available for all case configurations. Flexible leads are UL 1015 105 ̊C, C.S.A approved
#16 AWG, 24” long standard length. Non-standard lengths can be quoted upon request. - Terminals are brass. Stud and Female options with hardware available. (Note: terminals are only available on the square case configuration.)
- Mounting bracket kits for the Model 170SHT or 170SHL are available.
- Approximate weight: 3 lbs
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 170 |
| Input Range | 0-1500AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class, 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.6 B1.8 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 80.0VA |
| CT Continuous Thermal Rating Factor | 1.33 at 30°C amb., 1.0 at 55°C amb. |
| CT Ratio | 1,500:5A |
| CT Secondary Winding Resistance | 0.344Ω (344mΩ) @ 75°C |
| CT Window | 4.25" Diameter |
