- APPLICATION: With ammeters, energy management systems, and instrumentation.
- FREQUENCY: 50-400 Hz
- INSULATION LEVEL: 600V, 10kV BIL full wave

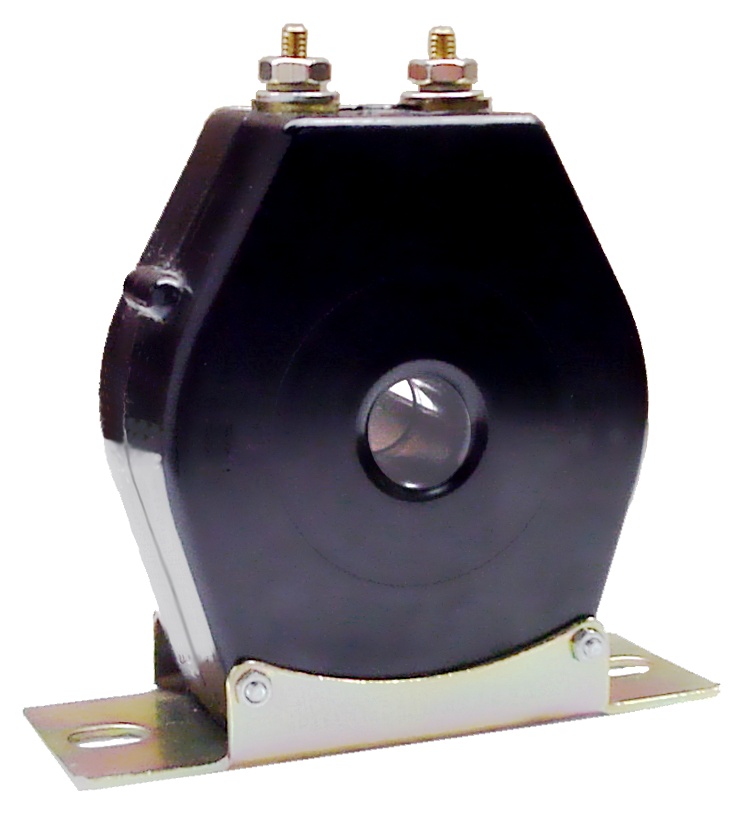

- Terminals are brass screws No. 8-32 with one flatwasher, lockwasher, and regular nut.
- Flexible leads are UL 1015 105° CSA approved. #16 AWG 24" long.
- Non-standard length to be specified. SFT case style also available as SFL with leads.
- Approximate weight: 0.9 lbs
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 14 |
| Input Range | 0-100AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 3.0VA |
| CT Ratio | 100:5A |
| CT Window | 0.50" Diameter |
