145-201 ITI

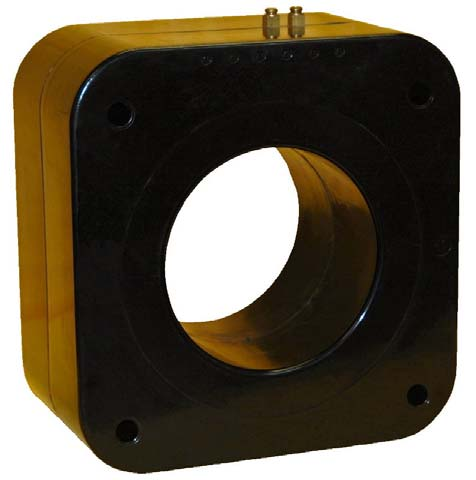

Model 145 200:5A Ratio CT, C100 Relay Class, 6" Window, ITI

$ 1,993.93 1993.93 USD $ 1,993.93

$ 1,993.93

Brand
Model
Input Range
Input Frequency
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Output
Tariff Code
ECCN
Insulation Level
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor
CT Ratio
CT Relay Class
CT Secondary Winding Resistance
CT Window

This combination does not exist.

APPLICATION: Relaying and Metering
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V, 10kV BIL full wave
Terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
Order mounting bracket 0221B00775 separately.
Multi-ratios available on request.
Approximate weight: 83 lbs
Excitation data available upon request.

Specifications

Product
Brand	Instrument Transformers Inc
Model	145
Input Range	0-200AAC
Input Frequency	60Hz
Accuracy	0.3 B0.1, 0.6 B0.2, 0.6 B0.5, 1.2 B0.9, 2.4 B1.8
Output	0-5AAC
Tariff Code	8504.31.4035
ECCN	EAR99
Insulation Level	600V, 10kV BIL full wave

Current Transformers
CT Continuous Thermal Rating Factor	2.0 at 30°C amb., 2.0 at 55°C amb.
CT Ratio	200:5A
CT Relay Class	C100
CT Secondary Winding Resistance	0.121Ω (121mΩ) @ 75°C
CT Window	6.00" Diameter
