144-122MR ITI

https://www.metersales.com/web/image/product.template/28398/image_1920?unique=78f9c58

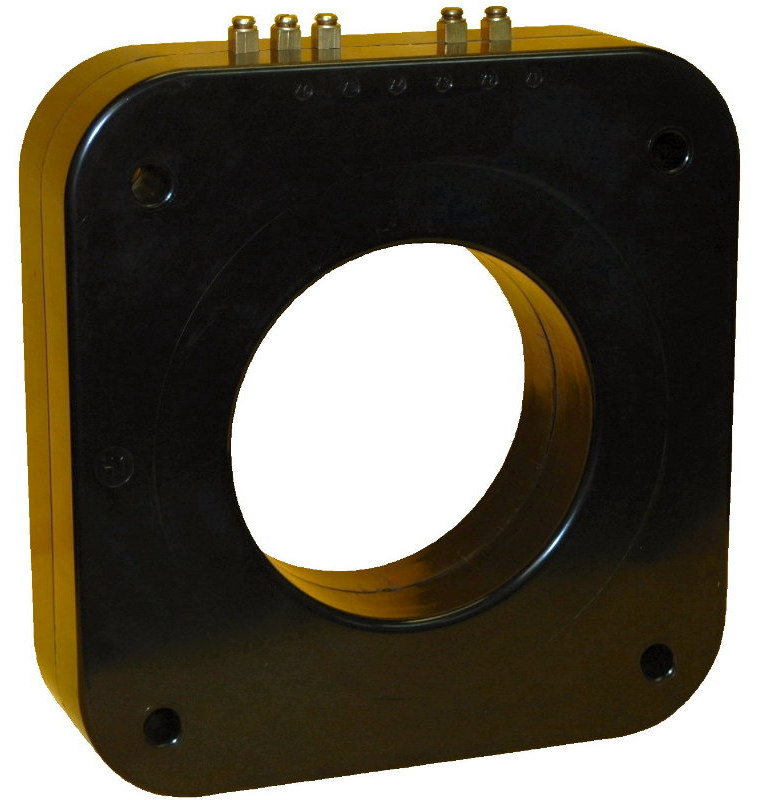

Model 144MR 1200:5A Ratio CT, C200 Relay Class, 6" Window, ITI

$ 1,396.22 1396.22 USD $ 1,396.22

$ 1,396.22

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Ratio
  • CT Relay Class
  • CT Window

This combination does not exist.

Contact Us

​

  • APPLICATION: Relaying
  • FREQUENCY: 50-400 Hz
  • INSULATION LEVEL: 600V, 10kV BIL full wave
  • Terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
  • The transformer winding is arranged so that the turns are fully distributed between all taps.
  • Order mounting bracket 0221B00259 separately.
  • Approximate weight: 40 lbs


Specifications

Product
Brand Instrument Transformers Inc
Model 144
Input Range 0-1200AAC
Output 0-5AAC
Tariff Code 8504.31.4035
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 1.5 at 55°C amb.
CT Ratio 1,200:5A, Multi-Ratio
CT Relay Class C200
CT Window 6.00" Diameter
