141-801 ITI

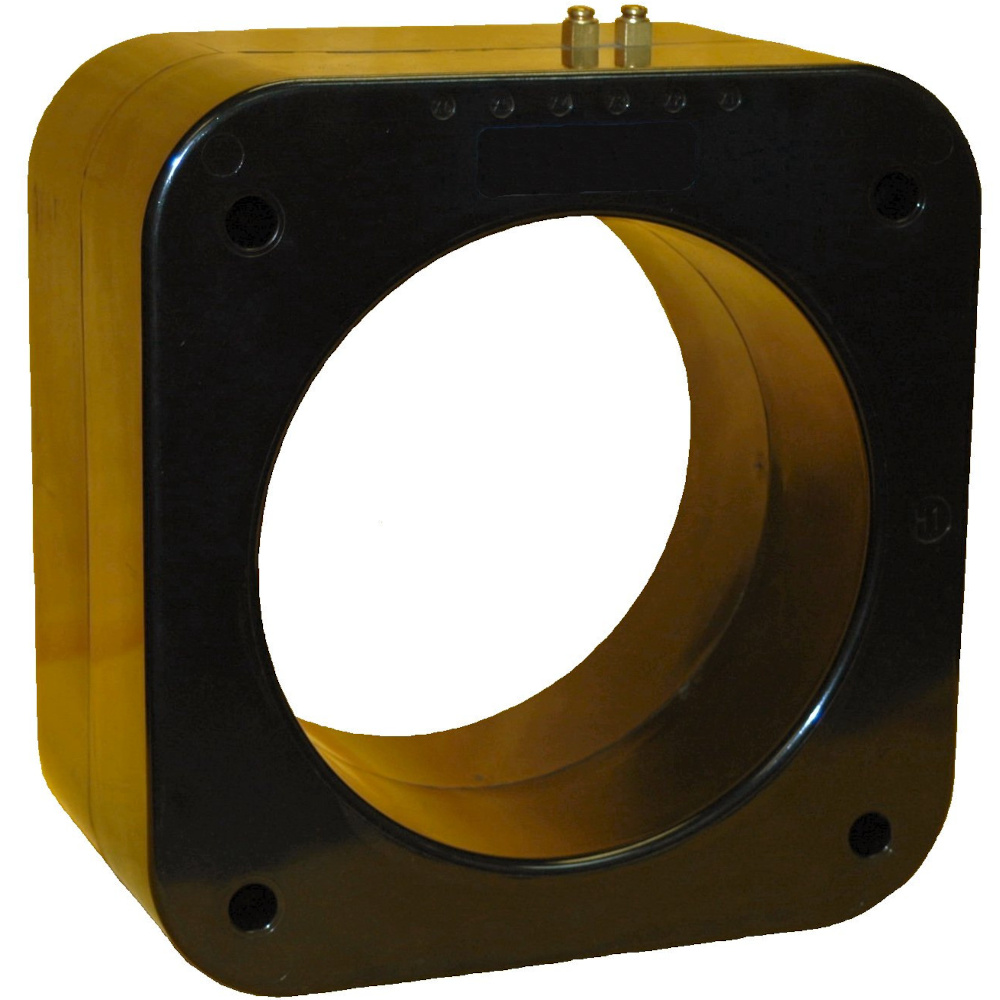

Model 141 800:5A Ratio CT, Multi-Ratio, C100 Relay Class, 8.13" Window, ITI

$ 1,298.46 1298.46 USD $ 1,298.46

$ 1,298.46

Brand
Model
Input Range
Output
Tariff Code
ECCN
Insulation Level
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor
CT Ratio
CT Relay Class
CT Window
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
CT Secondary Winding Resistance

This combination does not exist.

APPLICATION:

Relaying and Metering.

FREQUENCY:

50-400 Hz.

INSULATION LEVEL:

600 Volts, 10 kV BIL full wave.

- Terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
- The transformer winding is arranged so that the turns are fully distributed between all taps.
- Order mounting bracket kit 0221B00775 separately.
- Multi-ratios also available.
- Approximate weight 44 lbs.

Specifications

Product
Brand	Instrument Transformers Inc
Model	141
Input Range	0-800AAC
Output	0-5AAC
Tariff Code	8504.31.4035
ECCN	EAR99
Insulation Level	600V, 10kV BIL full wave
Accuracy	0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8

Current Transformers
CT Continuous Thermal Rating Factor	2.0 at 30°C amb., 1.5 at 55°C amb.
CT Ratio	800:5A
CT Relay Class	C100
CT Window	8.13" Diameter
CT Secondary Winding Resistance	0.664Ω (664mΩ)
