141-601MR ITI

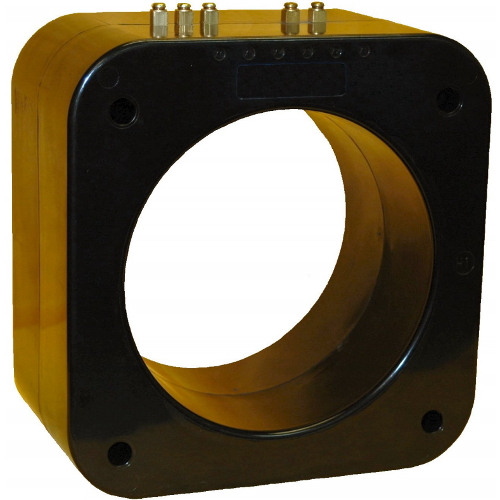

Model 141MR 600:5A Ratio CT, Multi-Ratio, C100 Relay Class, 8.13" Window, ITI
APPLICATION:
- Relaying.
FREQUENCY:
- 50-400 Hz.
INSULATION LEVEL:
- 600 Volts, 10 kV BIL full wave.
- Terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
- The transformer winding is arranged so that the turns are fully distributed between all taps.
- Order mounting bracket kit 0221B00775 separately.
- Approximate weight 45 lbs.
Specifications
Product | |
---|---|
Brand | Instrument Transformers Inc |
Model | 141 |
Input Range | 0-600AAC |
Output | 0-5AAC |
Tariff Code | 8504.31.4035 |
ECCN | EAR99 |
Insulation Level | 600V, 10kV BIL full wave |
Current Transformers | |
---|---|
CT Continuous Thermal Rating Factor | 2.0 at 30°C amb., 1.5 at 55°C amb. |
CT Ratio | 600:5A, Multi-Ratio |
CT Relay Class | C100 |
CT Window | 8.13" Diameter |
