141-502MR ITI

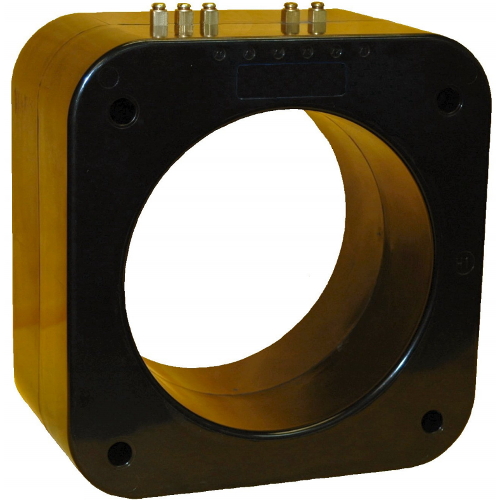

Model 141MR 5000:5A Ratio CT, Multi-Ratio, C200 Relay Class, 8.13" Window, ITI

2,159.15 2159.15 USD 2,159.15

2,159.15

  • Brand
  • Model
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Output
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Relay Class
  • CT Window
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

APPLICATION:
  • Relaying.
FREQUENCY:
  • 50-400 Hz.
INSULATION LEVEL:
  • 600 Volts, 10 kV BIL full wave.
    • Terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
    • The transformer winding is arranged so that the turns are fully distributed between all taps.
    • Order mounting bracket kit 0221B00775 separately.
    • Approximate weight 45 lbs.

Specifications

Brand Instrument Transformers Inc
Model 141
Input Range 0-1500AAC, 0-2000AAC, 0-2500AAC, 0-3000AAC, 0-3500AAC, 0-4000AAC, 0-5000AAC, 0-500AAC
Output 0-5AAC
CT Continuous Thermal Rating Factor 1.0 at 30°C amb., 0.8 at 55°C amb.
CT Relay Class C200
CT Window 8.13" Diameter
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.4035
ECCN EAR99
