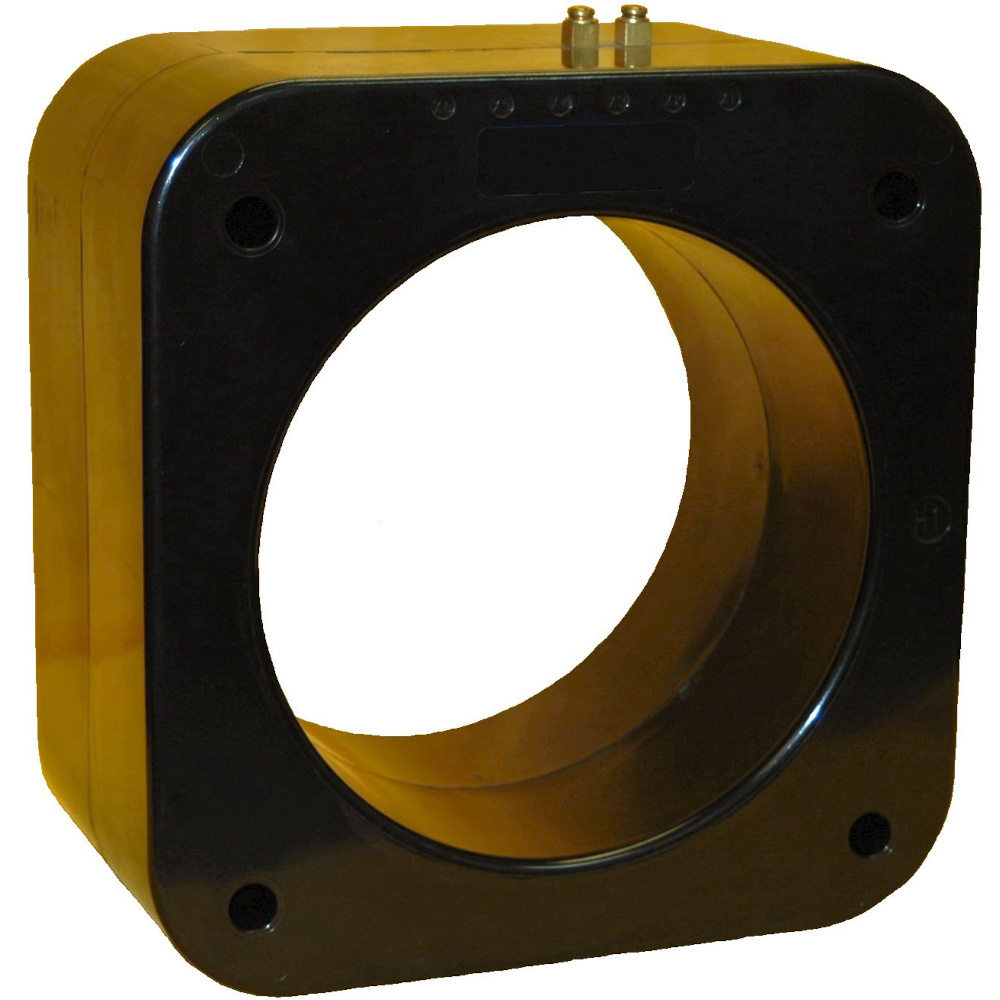

Model 141 200:5A Ratio CT, Multi-Ratio, C20 Relay Class, 8.13" Window, ITI

1,252.60 1252.6000000000001 USD 1,252.60

1,252.60

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Relay Class
  • CT Window
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • CT Secondary Winding Resistance

This combination does not exist.

APPLICATION:
  • Relaying and Metering.
FREQUENCY:
  • 50-400 Hz.
INSULATION LEVEL:
  • 600 Volts, 10 kV BIL full wave.
    • Terminals are brass screws No. 10-32 with one flatwasher and lockwasher.
    • The transformer winding is arranged so that the turns are fully distributed between all taps.
    • Order mounting bracket kit 0221B00775 separately.
    • Multi-ratios also available.
    • Approximate weight 44 lbs.

Specifications

Product
Brand Instrument Transformers Inc
Model 141
Input Range 0-200AAC
Output 0-5AAC
Tariff Code 8504.31.4035
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Accuracy 0.6 B0.1, 1.2 B0.2, 1.2 B0.5, 2.4 B0.9, 4.8 B1.8
Current Transformers
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 2.0 at 55°C amb.
CT Ratio 200:5A
CT Relay Class C20

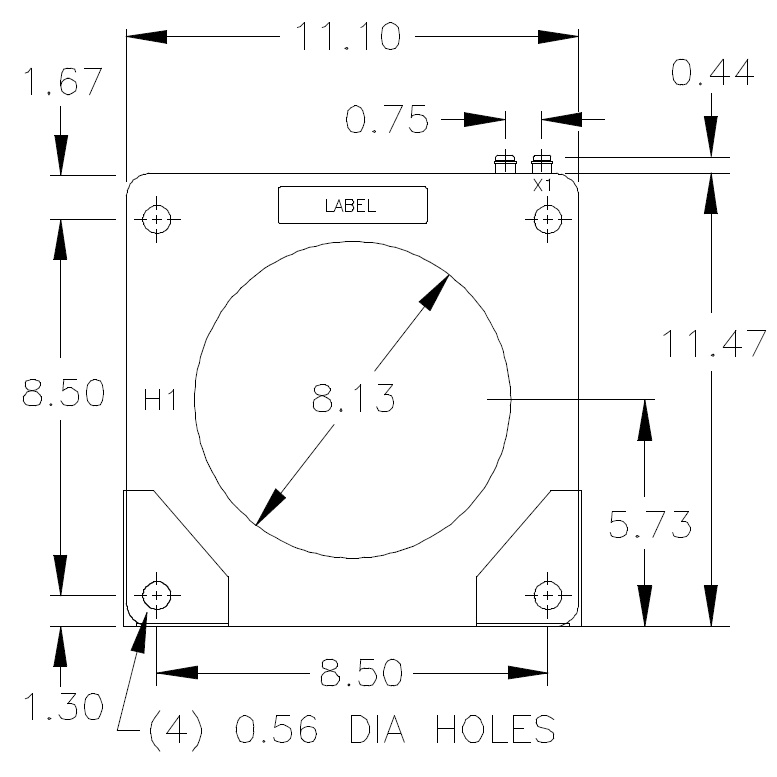

CT Window 8.13" Diameter
CT Secondary Winding Resistance 0.117Ω (117mΩ) @ 75°C
