141-122MR ITI

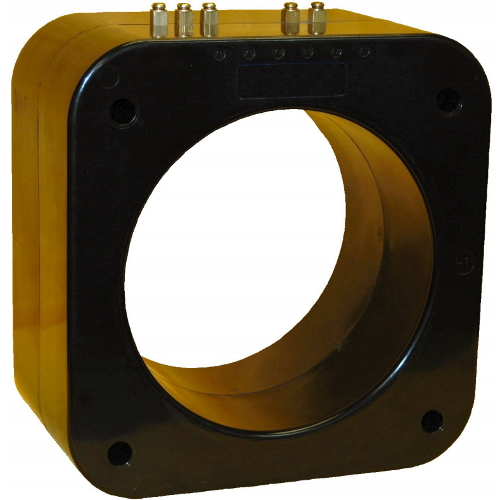

Model 141MR 1200:5A Ratio CT, Multi-Ratio, ITI

1,429.05 1429.05 USD 1,429.05

1,429.05

  • Brand
  • Model
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Output
  • CT Window
  • CT Relay Class
  • Tariff Code
  • ECCN

This combination does not exist.

APPLICATION:
  • Relaying.
FREQUENCY:
  • 50-400 Hz.
INSULATION LEVEL:
  • 600 Volts, 10 kV BIL full wave.

Terminals are brass screws No. 10-32 with one flatwasher and lockwasher.

The transformer winding is arranged so that the turns are fully distributed between all taps.

Order mounting bracket kit 0221B00775 separately.

Approximate weight 45 lbs.

Specifications

Brand Instrument Transformers Inc
Model 141
Input Range 0-1000AAC, 0-100AAC, 0-1200AAC, 0-200AAC, 0-300AAC, 0-400AAC, 0-500AAC, 0-600AAC, 0-800AAC, 0-900AAC
Output 0-5AAC
CT Window 8.13" Diameter
CT Relay Class C200
Tariff Code 8504.31.4035
ECCN EAR99
