135-801 ITI

https://www.metersales.com/web/image/product.template/71746/image_1920?unique=d8b0c0b

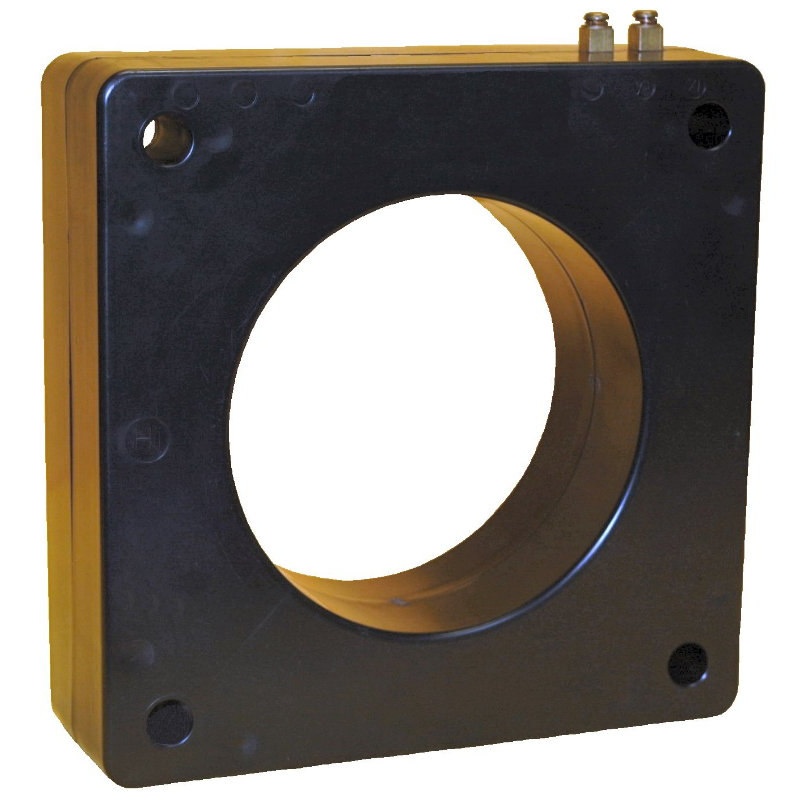

Model 135 800:5A Ratio CT, C50 Relay Class, 5.75" Window, ITI

$ 649.44 649.44 USD $ 649.44

$ 649.44

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Relay Class
  • CT Secondary Winding Resistance
  • CT Window

This combination does not exist.

Contact Us

​

  • Application:Relaying and metering.
  • Frequency: 50-400Hz
  • Insulation Level: 600 Volts, 10 kV BIL full wave.
  • Terminals: Brass screws No. 10-32 with one flatwasher and lockwasher.
  • Mounting bracket kit: 0221B00186 Sold separately.
  • Approximate weight: 18 lbs.

Specifications

Product
Brand Instrument Transformers Inc
Model 135
Input Range 0-800AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.6 B1.8
Output 0-5AAC
Tariff Code 8504.31.4035
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 1.5 at 55°C amb.
CT Ratio 800:5A
CT Relay Class C50
CT Secondary Winding Resistance 0.362Ω (362mΩ) @ 75°C

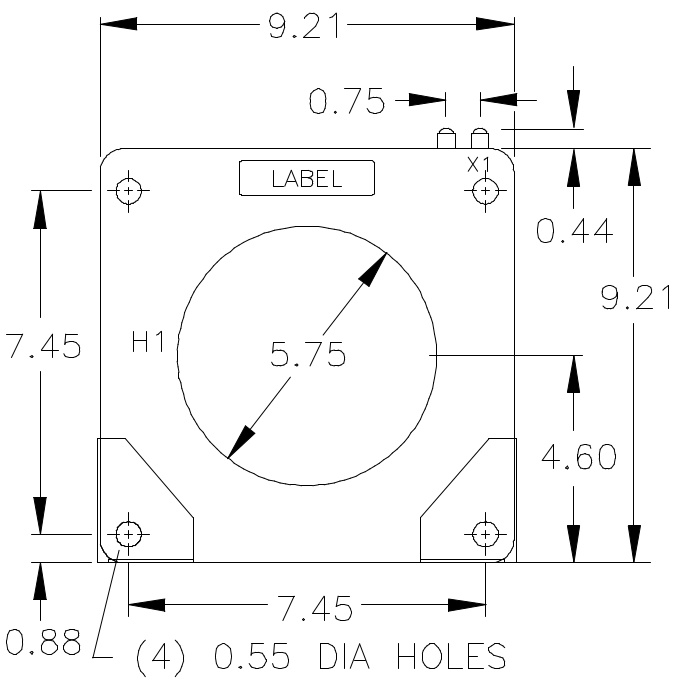

CT Window 5.75" Diameter
