130-202 ITI

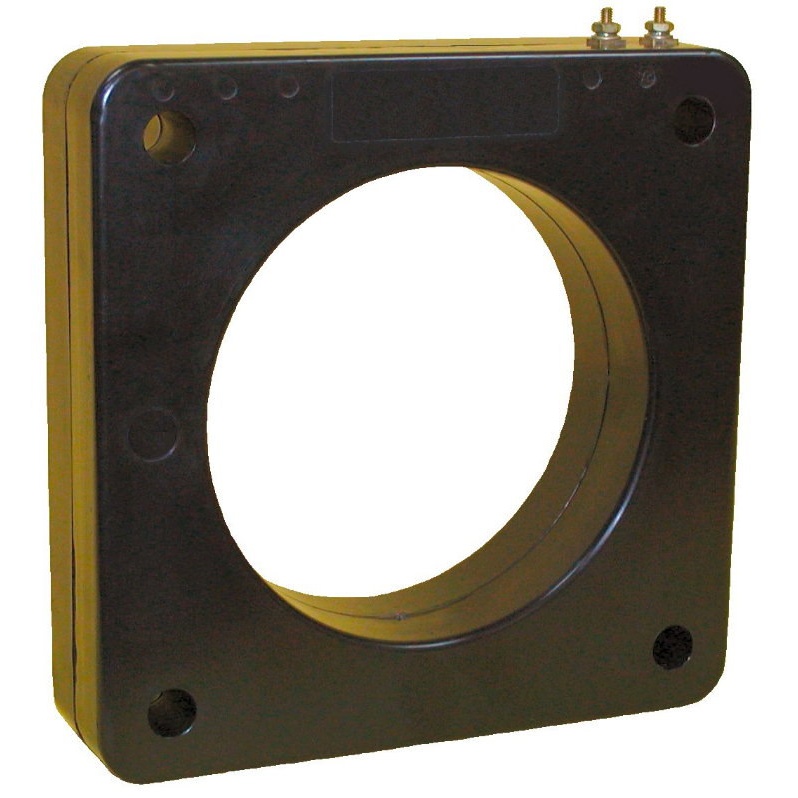

Model 130 2000:5A Ratio CT, C100 Relay Class, 5.75" Window, ITI

$ 646.28 646.28 USD $ 646.28

$ 646.28

Brand
Model
Input Range
Input Frequency
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Output
Tariff Code
ECCN
Insulation Level
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor
CT Ratio
CT Relay Class
CT Secondary Winding Resistance
CT Window

This combination does not exist.

APPLICATION: Relay and metering
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
Order mounting bracket kit 0221B00186 separately.
Multi-ratios also available.
Approximate weight 18 lbs.

Specifications

Product
Brand	Instrument Transformers Inc
Model	130
Input Range	0-2000AAC
Input Frequency	60Hz
Accuracy	0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output	0-5AAC
Tariff Code	8504.31.4035
ECCN	EAR99
Insulation Level	600V, 10kV BIL full wave

Current Transformers
CT Continuous Thermal Rating Factor	1.33 at 30°C amb., 1.0 at 55°C amb.
CT Ratio	2,000:5A
CT Relay Class	C100
CT Secondary Winding Resistance	0.783Ω (783mΩ) @ 75°C
CT Window	5.75" Diameter
