130-182 ITI

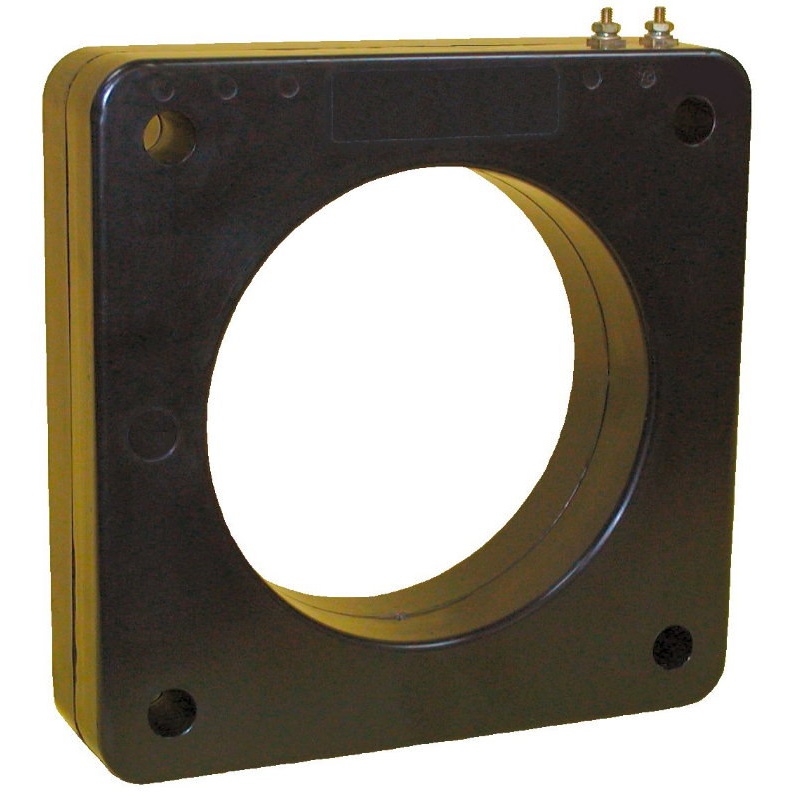

Model 130 1800:5A Ratio CT, Window 5.75", C100 Relay Class, ITI
- APPLICATION: Relay and metering
- FREQUENCY: 50-400 Hz.
- INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
- Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
- Order mounting bracket kit 0221B00186 separately.
- Multi-ratios also available.
- Approximate weight 18 lbs.
Specifications
Brand | Instrument Transformers Inc |
Model | 130 |
Input Range | 0-1800AAC |
Input Frequency | 60Hz |
Accuracy | 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8 |
Output | 0-5AAC |
CT Ratio | 1,800:5A |
CT Continuous Thermal Rating Factor | 1.33 at 30°C amb., 1.0 at 55°C amb. |
CT Relay Class | C100 |
CT Window | 5.75" Diameter |
Insulation Level | 600V, 10kV BIL full wave |
Tariff Code | 8504.31.4035 |
ECCN | EAR99 |
