126-252 EI

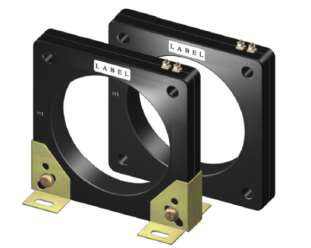

Model 126 2500:5A Ratio CT, 75VA, 8.25" Window, Electromagnetic Industries

$ 246.40 246.4 USD $ 259.37

$ 259.37

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Burden VA Max.
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Secondary Winding Resistance
  • CT Window

This combination does not exist.

  • APPLICATION: Metering
  • FREQUENCY: 50-400 Hz
  • INSULATION LEVEL: 600 Volts, 10kV BIL Full Wave
  • STANDARDS: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506
  • Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer, and one nut each.
  • Flexible leads are available for this case configuration. Flexible leads are UL 1015 105°C, C.S.A. approved #16 AWG, 24" long standard length. Non-standard lengths are available upon request.
  • Mounting bracket kits for the Model 126 SHT are available when required. Part number 1121A00018-2
  • Approximate weight: 3 lbs

Specifications

Product
Brand Electromagnetic Industries
Model 117
Input Range 0-2500AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8, 1% Class
Output 0-5AAC
Tariff Code 8504.31.4035
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Burden VA Max. 75.0VA
CT Continuous Thermal Rating Factor 1.0 at 30°C amb., 0.8 at 55°C amb.
CT Ratio 2,500:5A
CT Secondary Winding Resistance 0.904Ω (904mΩ) @ 75°C

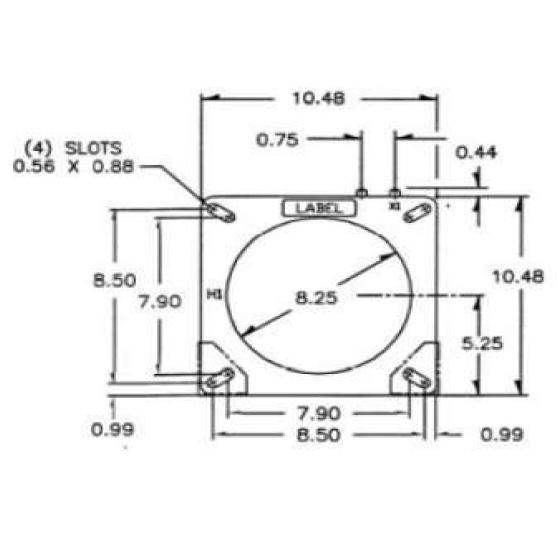

CT Window 8.25" Diameter
