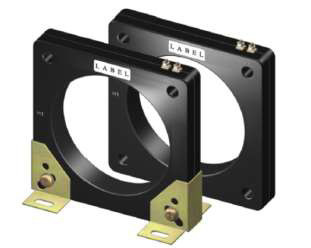

126-202 EI

https://www.metersales.com/web/image/product.template/26772/image_1920?unique=512a7a9

Model 126 2000:5A Ratio CT, 60VA, 8.25" Window, Electromagnetic Industries

$ 360.02 360.02 USD $ 378.97

$ 378.97

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Burden VA Max.
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Secondary Winding Resistance
  • CT Window

This combination does not exist.

Contact Us

​

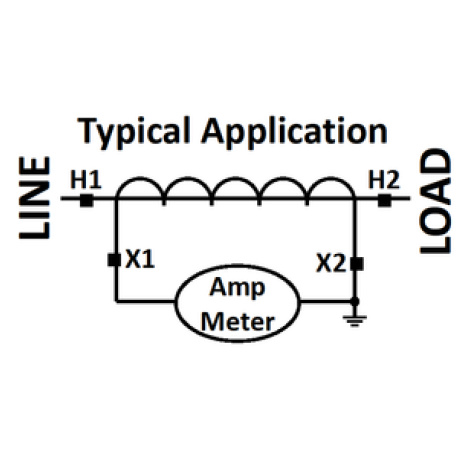

  • APPLICATION: Metering
  • FREQUENCY: 50-400 Hz
  • INSULATION LEVEL: 600 Volts, 10kV BIL Full Wave
  • STANDARDS: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506
  • Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer, and one nut each.
  • Flexible leads are available for this case configuration. Flexible leads are UL 1015 105°C, C.S.A. approved #16 AWG, 24" long standard length. Non standard lengths are available upon request.
  • Mounting bracket kits for the Model 126 SHT are available when required. Part number 1121A00018-2
  • Approximate weight: 3 lbs


Specifications

Product
Brand Electromagnetic Industries
Model 126
Input Range 0-2000AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output 0-5AAC
Tariff Code 8504.31.4035
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Burden VA Max. 60.0VA
CT Continuous Thermal Rating Factor 1.33 at 30°C amb., 1.0 at 55°C amb.
CT Ratio 2,000:5A
CT Secondary Winding Resistance 0.578Ω (578mΩ) @ 75°C
CT Window 4.62" Diameter
