Model 505 Insulation Tester, 0-2kV AC/DC, 0-100M Ohm (100V-1kVDC), 0-1T Ohm (100V-5kVDC), Simpson

3,911.21 3911.21 USD 3,911.21

3,911.21

  • Brand
  • Model
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range

This combination does not exist.

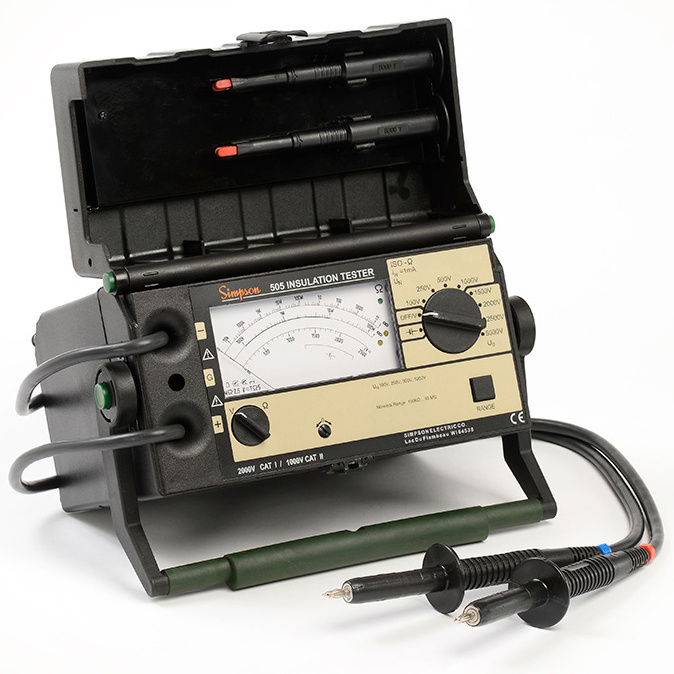

505 High Voltage Insulation Tester

Measures Insulation Resistances Up To 1 T Ohm

Simpson’s Model 505 High Voltage Insulation Tester is capable of measuring insulation resistances from 10 kilohms to 1 teraohm with eight selectable test voltages up to 5000 V.

As a safety feature, the insulation tester acts as an AC/DC voltmeter to measure the absence of voltage in networks up to 2000V.

For added safety, the cables are permanently attached, preventing possible injury that could occur by the accidental removal of the cables.

The Model 505 features automatic discharging capability of capacitive units under test and a lock in test switch, for hands-free operation.

An optional guard cable is available to minimize surface leakage errors. Two LEDs indicate the selected measuring range, and one LED signifies valid measurements.

Each tester comes in a padded carrying case with permanently connected cables and test probes, 2 alligator clips and a plug-in battery module with batteries.


  • Eight Test Voltages: 100, 250, 500, 1000, 1500, 2000, 2500, and 5000 VDC

  • High Sensitivity, Direct Resistance Reading to 1TΩ (1,000,000 MΩ ), no Multipliers

  • Voltage Measurement to 2000 V AC/DC

  • Battery Powered

  • Built in Battery Test and Battery Charge Indicator

Insulation Resistance

Nominal / Open-Circuit Voltage
RangeNominal CurrentShort Circuit CurrentIntrinsic Error

100V
250V
500V
1000V


100kΩ to

100MΩ


1mA


0-1.3mA


±2.5% of Full Scale

100V / 1500V
250V / 2000V
500V / 2500V
1000V / 5000V


10kΩ to

1TΩ

0.7mA
0.5mA
0.4mA
0.1mA


0-1.3mA


±5% of Full Scale


 Direct and Alternating Voltage

Measuring RangeFrequencyInternal ResistanceMaximum OverloadIntrinsic Error
0-2000V AC/DC15Hz to 500Hz5MΩ2200V AC/DC max. 10s

±5% of Full Scale

Simpson 505 Insulation Tester Datasheet

Specifications

Brand Simpson Electric
Model 505
Input Range 0-2000VDC, 0-2000VAC, 0-100M ohm, 0-1T Ohm, Battery Test
