12391

260-8P VOM Protected, Simpson Electric

584.59 584.59 USD 584.59

584.59

  • Brand
  • Model
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Tariff Code
  • ECCN

This combination does not exist.

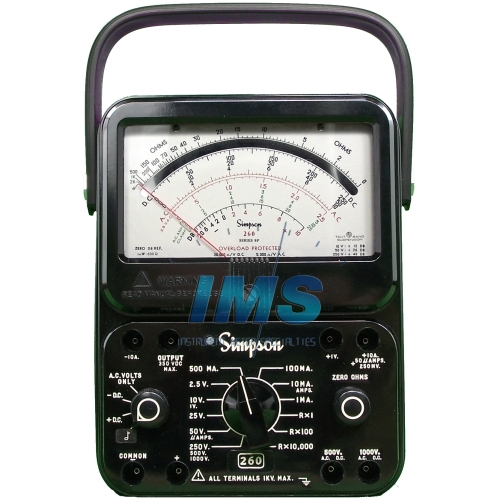

Nothing beats a Simpson 260-8P for monitoring fluctuating trends and rates. Portable yet with benchtop accuracy, the 260-8P is ideal for use anywhere -- workshop, lab or in the field. The 260-8P features an additional resettable overload protection circuit and audible continuity checking. The 260-8 comes with batteries, a manual, and full-size test leads with threaded probe tips and screw-on alligator clips.

  • Easy to operate -- two knobs control the selection of functions and ranges
  • More than 20 measurement ranges for DC voltage and current, AC voltage, and resistance
  • Large, tri-colored dial with mirrored scale to prevent parallax error
  • Reverse recessed safety jacks prevent operator and tool contact with electrical connections
  • Rugged phenolic case with reinforced walls for maximum durability
  • Self-shielding taut-band meter movement provides added shock resistance

Specifications

Brand Simpson Electric
Model 260
Input Range 0-1000VAC, 0-1000VDC, 0-100mADC, 0-10ADC, 0-10mADC, 0-10VAC, 0-10VDC, 0-1mADC, 0-1VDC, 0-200k Ohms, 0-20M Ohms, 0-250VAC, 0-25VAC, 0-2.5VAC, 0-25VDC, 0-2.5VDC, 0-2k Ohms, 0-500mADC, 0-500VAC, 0-500VDC, 0-50µADC/250mVDC, 0-50VAC, 0-50VDC
Tariff Code 9030.31.0000
ECCN EAR99
