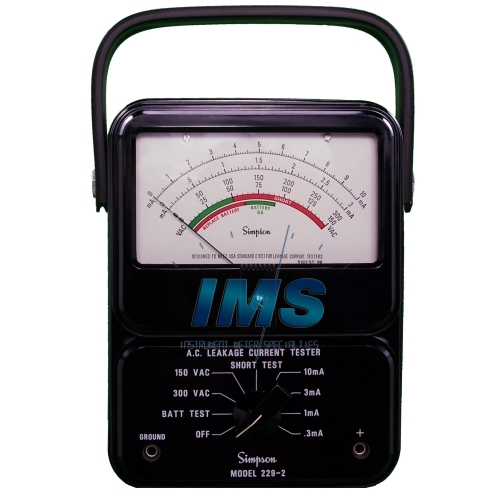

Testing for dangerous small leakage currents is easy with the Simpson Model 229-2 Leakage Current Tester. For use in appliance field service, in the lab, or in production, the 229-2 approximates the human threshold of perception in detecting hazardous AC leakage current. The 229-2 comes with test leads with alligator clips, manual and batteries.
- Checks both 120VAC and 240VAC appliances, motors and other equipment
- Conforms to ANSI C101.1-1986 and UL safety standards
- Overload protected up to 500V peak momentarily on all ranges
- Compensated to approximate Dalziel's threshold of perception curve
Specifications
| Brand | Simpson Electric |
| Input Range | 0-0.3mAAC, 0-10mAAC, 0-150VAC, 0-1mAAC, 0-300VAC, 0-3mAAC, Battery Test, Short Test |
| Tariff Code | 9030.31.0000 |
| ECCN | EAR99 |
