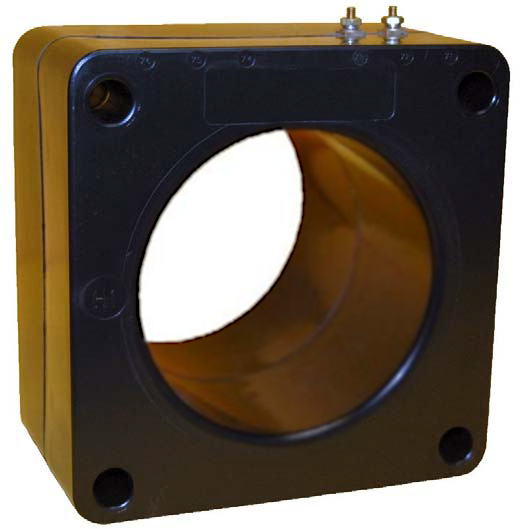

Application: Used for Relay and Metering applications
Frequency: 50-400 Hz
Insulation Level: 600 Volts, 10Kv BIL Full Wave
- Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each.
- Multi-ratios available on request.
- Excitation data available on request.
- Mounting Bracket Kits are sold separately (P/N 0221B01525)
- Approximate weight: 13 lbs.
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 117 |
| Input Range | 0-2500AAC |
| Input Frequency | 60Hz |
| Accuracy | 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Continuous Thermal Rating Factor | 1.0 at 30°C amb., 0.6 at 55°C amb. |
| CT Ratio | 2,500:5A |
| CT Relay Class | C100 |
| CT Window | 4.62" Diameter |
