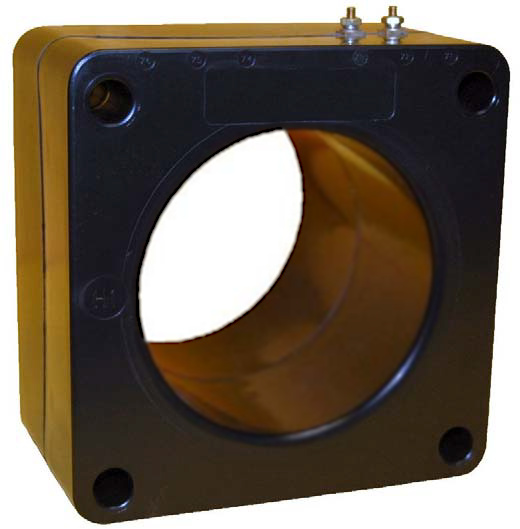

117-202 ITI

Model 117 2000:5A Ratio CT, C100 Relay Class, 4.62" Window, ITI

557.26 557.26 USD 557.26

557.26

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Relay Class
  • CT Window
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

Application: Used for Relay and Metering applications
Frequency: 50-400 Hz
Insulation Level: 600 Volts, 10Kv BIL Full Wave

  • Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each.
  • Multi-ratios available on request.
  • Excitation data available on request.
  • Mounting Bracket Kits are sold separately (P/N 0221B01525)
  • Approximate weight: 13 lbs.


Specifications

Brand Instrument Transformers Inc
Model 117
Input Range 0-2000AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output 0-5AAC
CT Ratio 2,000:5A
CT Continuous Thermal Rating Factor 1.0 at 30°C amb., 0.6 at 55°C amb.
CT Relay Class C100
CT Window 4.62" Diameter
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.4035
ECCN EAR99
