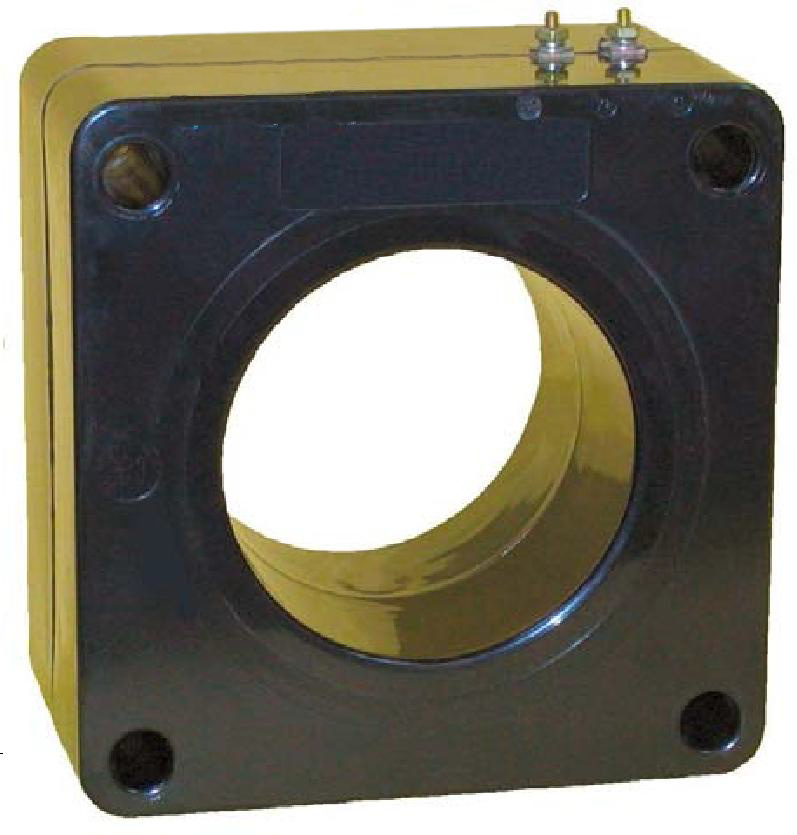

Application: Used for Relay and Metering applications
Frequency: 50-400 Hz
Insulation Level: 600 Volts, 10Kv BIL Full Wave
- Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each.
- Multi-ratios available on request.
- Excitation data available on request.

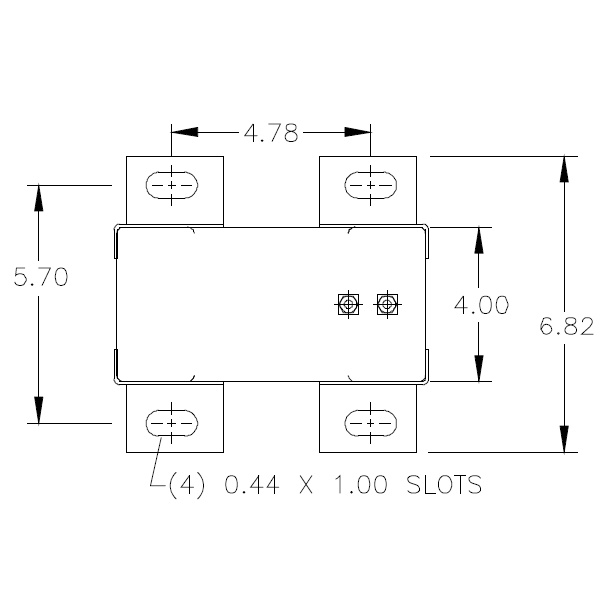

- Mounting Bracket Kits are sold separately (P/N 0221B01525)
- Approximate weight: 25 lbs.
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | 115 |
| Input Range | 0-1500AAC |
| Input Frequency | 60Hz |
| Accuracy | 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Continuous Thermal Rating Factor | 1.0 at 30°C amb., 0.8 at 55°C amb. |
| CT Ratio | 1,500:5A |
| CT Relay Class | C100 |
| CT Secondary Winding Resistance | 0.825Ω (825mΩ) @ 75°C |

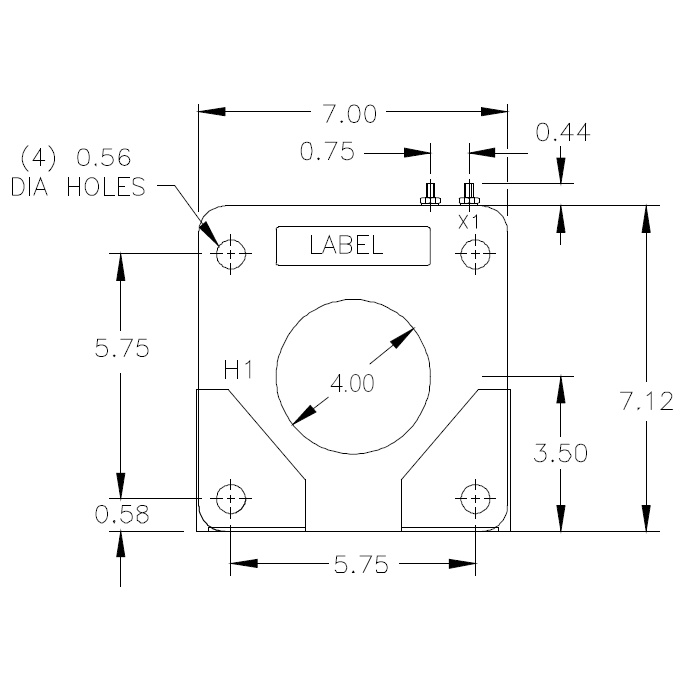

| CT Window | 4.00" Diameter |
