115-152 EI

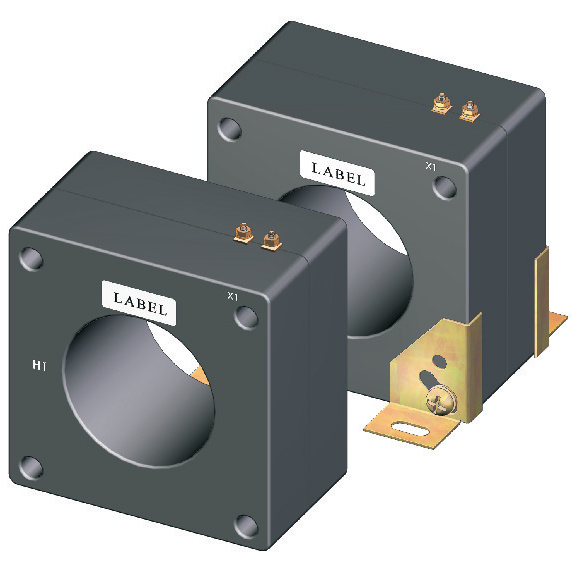

Model 115 1500:5A Ratio CT, C100 Relay Class, 4.00" Window, Electromagnetic Industries

$ 564.59 564.59 USD $ 594.30

Brand
Model
Input Range
Output
CT Relay Class
CT Window
ECCN
Tariff Code
CT Ratio
Input Frequency
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
CT Secondary Winding Resistance
Insulation Level
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor

This combination does not exist.

APPLICATION: Relay and metering
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.

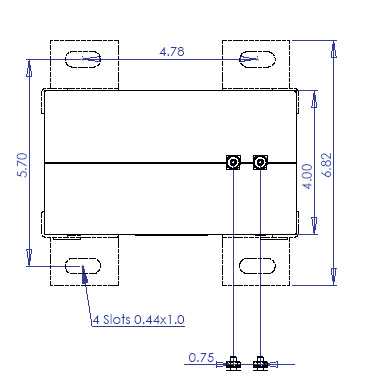

Order mounting bracket kit 0221B01525 separately.
Other ratios also available.
Approximate weight 25 lbs.

Specifications

Product
Brand	Electromagnetic Industries
Model	115
Input Range	0-1500AAC
Output	0-5AAC
ECCN	EAR99
Tariff Code	8504.31.0000
Input Frequency	60Hz
Accuracy	0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Insulation Level	600V, 10kV BIL full wave

Current Transformers
CT Relay Class	C100
CT Window	4.00" Diameter
CT Ratio	1,500:5A
CT Secondary Winding Resistance	0.825Ω (825mΩ) @ 75°C
CT Continuous Thermal Rating Factor	1.0 at 30°C amb., 0.8 at 55°C amb.
