115-101 EI

https://www.metersales.com/web/image/product.template/73590/image_1920?unique=998ee63

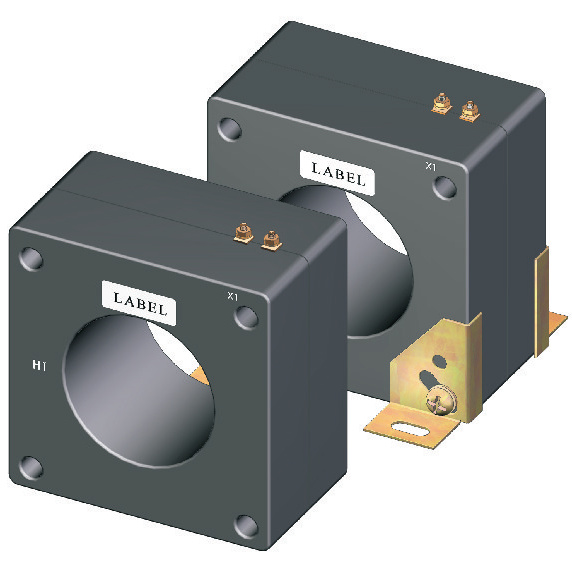

Model 115 100:5A Ratio CT, C10 Relay Class, 4.00" Window, Electromagnetic Industries

$ 415.82 415.82 USD $ 437.71

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Relay Class
  • CT Secondary Winding Resistance
  • CT Window

This combination does not exist.

Contact Us

​

Share

  • APPLICATION: Relay and metering
  • FREQUENCY: 50-400 Hz.
  • INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
  • Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
  • Order mounting bracket kit 0221B01525 separately.
  • Other ratios also available.
  • Approximate weight 25 lbs.


Specifications

Product
Brand Electromagnetic Industries
Model 115
Input Range 0-100AAC
Input Frequency 60Hz
Accuracy 1.2 B0.1, 1.2 B0.2, 2.4 B0.5, 4.8 B0.9
Output 0-5AAC
Tariff Code 8504.31.0000
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 2.0 at 55°C amb.
CT Ratio 100:5A
CT Relay Class C10
CT Secondary Winding Resistance 0.046Ω (46mΩ) @ 75°C
CT Window 4.00" Diameter
