Model 114 150:5A Ratio CT, C20 Relay Class, 3.25" Window, Electromagnetic Industries

393.89 393.89 USD 414.62

414.62

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Relay Class
  • CT Window
  • CT Secondary Winding Resistance
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

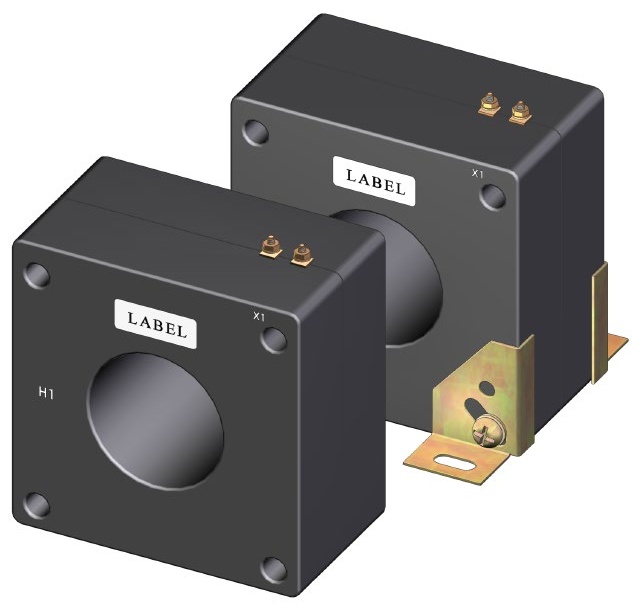

Model 114 (Window Size: 3.25” Diameters)


Application: Used for Relay and Metering applications
Frequency: 50-400 Hz
Insulation Level: 600 Volts, 10Kv BIL Full Wave
Standards: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506

  • Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each.
  • Other Ratios available on request.
  • Mounting Bracket Kits are sold separately (P/N 0221B01525)
  • Approximate weight: 22 lbs.

Specifications

Brand Electromagnetic Industries
Model 114
Input Range 0-150AAC
Input Frequency 60Hz
Accuracy 0.6 B0.1, 0.6 B0.2, 1.2 B0.5, 2.4 B0.9, 4.8 B1.8
Output 0-5AAC
CT Ratio 150:5A
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 2.0 at 55°C amb.
CT Relay Class C20
CT Window 3.25" Diameter
CT Secondary Winding Resistance 0.093Ω (93mΩ) @ 75°C
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.0000
ECCN EAR99
